INA NATR6-X INANATR6X

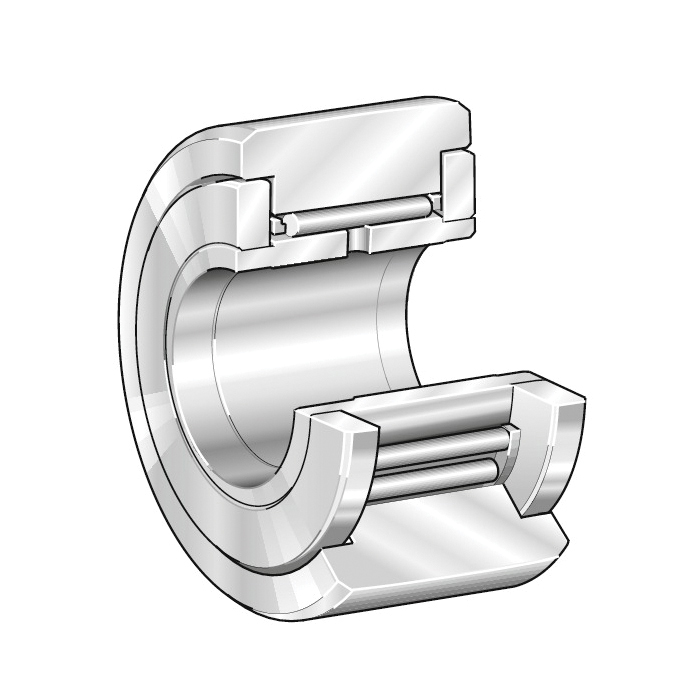

INA NATR6-X Flat Yoke Type Track Roller With Inner Ring and Axial Guidance, 6 mm Dia Bore, 19 mm Dia x 11 mm W Roller, 4000 N Load, Steel Roller
- Manufacturer: Schaeffler Group
- Brand Name: INA
- Part Number: INANATR6X
- MPN: NATR6-X
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Yoke type track rollers are single or double-row units mounted on shafts or studs. They comprise thick-walled outer rings with a profiled outside surface and needle roller and cage assemblies or full-complement rolling element sets.
INA Track Roller, Flat Yoke Type, Series: NATR, 6 mm Bore, 19 mm Roller Diameter, 11 mm Roller Width, 12 mm Overall Width, 4000 N Load, Double Seal Closure, 11000 rpm Maximum, -30 to 140 deg C, Steel Roller, Uncoated
| Bore Diameter | : | 6 mm |
| Closure Type | : | Double Seal |
| Finish | : | Uncoated |
| Load Capacity | : | 4000 N |
| Maximum Speed | : | 11000 rpm |
| Overall Width | : | 12 mm |
| Roller Diameter | : | 19 mm |
| Roller Material | : | Steel |
| Roller Width | : | 11 mm |
| Series | : | NATR |
| Temperature Rating | : | -30 to 140 deg C |
| Type | : | Flat Yoke Type |
- Yoke type track rollers can support high radial loads as well as axial loads arising from slight misalignment and skewed running
- Needle roller design
- Gap seals on both sides
- Cylindrical outer surface
- 3500 N dynamic/4000 N static
