INA LR5205-2HRS-TVH-XL INALR5205-2RS

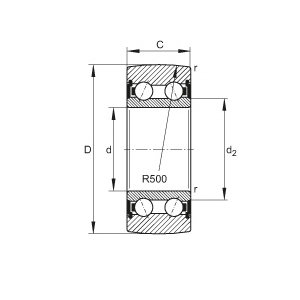

INA LR5205-2HRS-TVH-XL Yoke Track Roller, 25 mm Dia Bore, 62 mm Dia x 20.6 mm W Roller, 19700 N Dynamic/15400 N Static/790 N Fatigue Load
- Manufacturer: Schaeffler Group
- Brand Name: INA
- Part Number: INALR5205-2RS
- Alt Part Number: LR5205-2RS
- MPN: LR5205-2HRS-TVH-XL
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
INA Track Roller, Yoke, Series: LR52, 25 mm Bore, 62 mm Roller Diameter, 20.6 mm Roller Width, 20.6 mm Overall Width, 19700 N Dynamic/15400 N Static/790 N Fatigue Load, Double Seal Closure, 4500 rpm Maximum, -20 to 120 deg C
| Bore Diameter | : | 25 mm |
| Closure Type | : | Double Seal |
| Load Capacity | : | 19700 N Dynamic/15400 N Static/790 N Fatigue |
| Maximum Speed | : | 4500 rpm |
| Overall Width | : | 20.6 mm |
| Roller Diameter | : | 62 mm |
| Roller Width | : | 20.6 mm |
| Series | : | LR52 |
| Temperature Rating | : | -20 to 120 deg C |
| Type | : | Yoke |
- Double row
- Sealed on both sides
