INA LR5203-2HRS-TVH-XL INALR5203-2RS

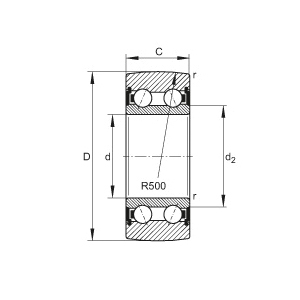

INA LR5203-2HRS-TVH-XL Yoke Track Roller, 17 mm Dia Bore, 47 mm Dia x 17.5 mm W Roller, 13700 N Dynamic/9800 N Static/495 N Fatigue Load
- Manufacturer: Schaeffler Group
- Brand Name: INA
- Part Number: INALR5203-2RS
- Alt Part Number: LR5203-2RS
- MPN: LR5203-2HRS-TVH-XL
- UPC: 353730795686
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
INA Track Roller, Yoke, Series: LR52, 17 mm Bore, 47 mm Roller Diameter, 17.5 mm Roller Width, 17.5 mm Overall Width, 13700 N Dynamic/9800 N Static/495 N Fatigue Load, Double Seal Closure, 6300 rpm Maximum, -20 to 120 deg C
| Bore Diameter | : | 17 mm |
| Closure Type | : | Double Seal |
| Load Capacity | : | 13700 N Dynamic/9800 N Static/495 N Fatigue |
| Maximum Speed | : | 6300 rpm |
| Overall Width | : | 17.5 mm |
| Roller Diameter | : | 47 mm |
| Roller Width | : | 17.5 mm |
| Series | : | LR52 |
| Temperature Rating | : | -20 to 120 deg C |
| Type | : | Yoke |
- Double row
- Sealed on both sides
Specification Sheet
