INA KR22-PP INAKR22PP

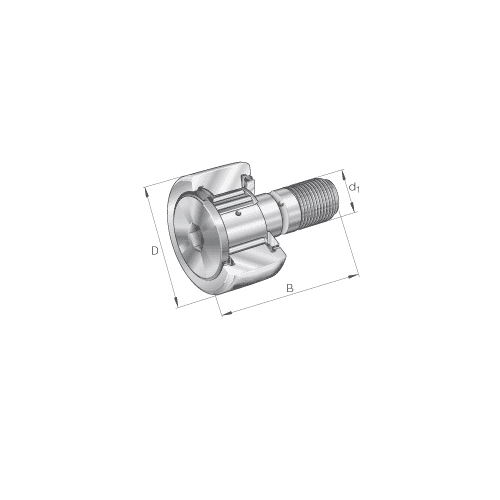

INA KR22-PP KR..-PP Stud Track Roller With Axial Guidance, 22 mm Dia x 12 mm W Roller, 10 mm Dia x 23 mm L Stud
- Manufacturer: Schaeffler Group
- Brand Name: INA
- Part Number: INAKR22PP
- MPN: KR22-PP
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
INA Track Roller, Stud, Series: KR..-PP, 22 mm Roller Dia, 12 mm Roller Width, 10 mm Stud Dia, 23 mm Stud Length, M10 x 1, 12 mm Thread Length, 4550 N Dynamic/5300 N Static/730 N Fatigue, 8000 rpm Maximum, -30 to 100 deg C, Standard Stud, Sealed Closure, Hex, Uncoated
| Closure Type | : | Sealed |
| Finish | : | Uncoated |
| Head Type | : | Hex |
| Load Capacity | : | 4550 N Dynamic/5300 N Static/730 N Fatigue |
| Maximum Speed | : | 8000 rpm |
| Roller Diameter | : | 22 mm |
| Roller Width | : | 12 mm |
| Series | : | KR..-PP |
| Stud Diameter | : | 10 mm |
| Stud Length | : | 23 mm |
| Stud Type | : | Standard |
| Temperature Rating | : | -30 to 100 deg C |
| Thread Length | : | 12 mm |
| Thread Size | : | M10 x 1 |
| Type | : | Stud |
- Plastic axial plain washers on both sides
Specification Sheet
