INA KBZ08-PP INAKBZ08PP
INA KBZ08-PP KBZ..-PP Linear Ball Bushing Bearing, Closed Closure, 1/2 in Dia Shaft, 7/8 in OD, 1-1/4 in L
- Manufacturer: Schaeffler Group
- Brand Name: INA
- Part Number: INAKBZ08PP
- MPN: KBZ08-PP
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:

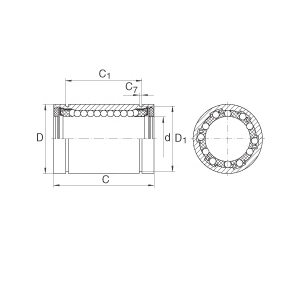

Linear ball bearings of series KBZ consist of a hardened and ground solid outer ring and a retainer. The outer ring is machined from high-carbon bearing steel. The retainer is manufactured from a high strength engineered resin.
INA Linear Ball Bushing Bearing, Series: KBZ..-PP, 1/2 in Shaft Dia, 7/8 in Outside Dia, 7/8 in Height, 1-1/4 in Length, 7/8 in W, Closed Closure, 115 lbf Dynamic/176 lbf Static, Chrome Steel Bearing, Buna-N Seal, Linear Lube Lubrication, -4 to 176 deg F
| Bearing Material | : | Chrome Steel |
| Closure Type | : | Closed |
| Height | : | 7/8 in |
| Length | : | 1-1/4 in |
| Load Capacity | : | 115 lbf Dynamic/176 lbf Static |
| Lubrication Type | : | Linear Lube |
| Outside Diameter | : | 7/8 in |
| Seal Material | : | Buna-N |
| Series | : | KBZ..-PP |
| Shaft Diameter | : | 1/2 in |
| Temperature Rating | : | -4 to 176 deg F |
| Width | : | 7/8 in |
- Corrosion-resistant design possible
