INA HK2212 INAHK2212
  1. pin-int

INA HK2212 INAHK2212

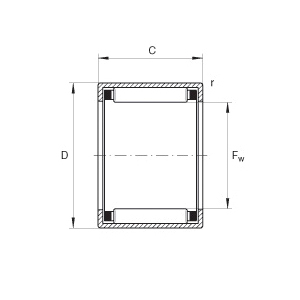

INA HK2212 HK Series Drawn Cup Needle Roller Bearing With Open End, 22 mm Dia Bore, 28 mm OD, 1 Row, 12 mm W, 9100 N Dynamic/13400 N Static/1600 N Fatigue Load

  • Manufacturer: Schaeffler Group
  • Brand Name: INA
  • Part Number: INAHK2212
  • MPN: HK2212
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

INA Drawn Cup Needle Roller Bearing, Series: HK Series, 22 mm Bore Dia, 28 mm Outside Dia, 1 Row, 12 mm W, Open Closure, 9100 N Dynamic/13400 N Static/1600 N Fatigue, Steel Cage, 11700 rpm Maximum

Bore Diameter      :      22 mm
Cage Material      :      Steel
Closure Type      :      Open
Load Capacity      :      9100 N Dynamic/13400 N Static/1600 N Fatigue
Maximum Speed      :      11700 rpm
Number of Rows      :      1
Outside Diameter      :      28 mm
Series      :      HK Series
Width      :      12 mm
  • Deep drawn shell design for maximum capacity in the minimum radial space
  • Cage guided needle rollers for low friction, whole roller loading and high speeds
  • Open for through shaft locations to improve sealing
  • Easily mounted without snap rings or shoulders
