INA HK1522-ZW INAHK1522
  1. pin-int

INA HK1522-ZW INAHK1522

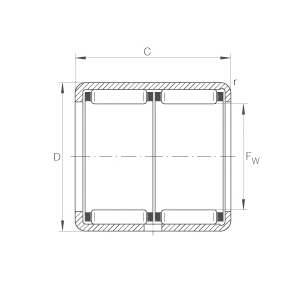

INA HK1522-ZW HK Series Drawn Cup Needle Roller Bearing With Open End, 15 mm Dia Bore, 21 mm OD, 1 Row, 22 mm W, 13400 N Dynamic/19500 N Static/2380 N Fatigue Load

  • Manufacturer: Schaeffler Group
  • Brand Name: INA
  • Part Number: INAHK1522
  • MPN: HK1522-ZW
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

INA Drawn Cup Needle Roller Bearing, Series: HK Series, 15 mm Bore Dia, 21 mm Outside Dia, 1 Row, 22 mm W, Open Closure, 13400 N Dynamic/19500 N Static/2380 N Fatigue, Steel Cage, 16500 rpm Maximum, 140 deg C

Bore Diameter      :      15 mm
Cage Material      :      Steel
Closure Type      :      Open
Load Capacity      :      13400 N Dynamic/19500 N Static/2380 N Fatigue
Maximum Speed      :      16500 rpm
Number of Rows      :      1
Outside Diameter      :      21 mm
Series      :      HK Series
Temperature Rating      :      140 deg C
Width      :      22 mm
  • Deep drawn shell design for maximum capacity in the minimum radial space
  • Cage guided needle rollers for low friction, whole roller loading and high speeds
  • Open for through shaft locations to improve sealing
  • Easily mounted without snap rings or shoulders
