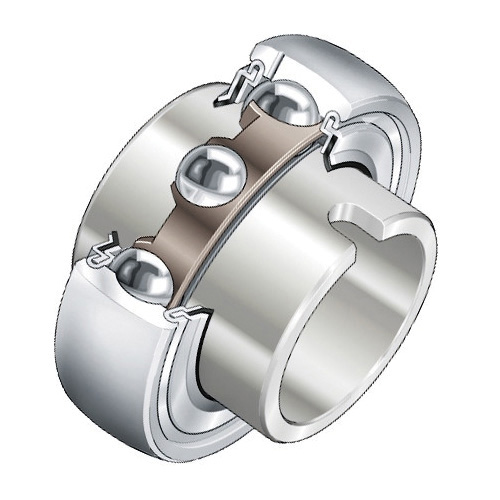

INA GLE35-XL-KRR-B INAGLE35XLKRRB
INA GLE35-XL-KRR-B GLE-XL-KRR-B Radial Insert Ball Bearing, 35 mm Dia Bore, 72 mm OD, 1 Rows, 37.7 mm W, 27500 N Load
- Manufacturer: Schaeffler Group
- Brand Name: INA
- Part Number: INAGLE35XLKRRB
- MPN: GLE35-XL-KRR-B
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Radial insert ball bearings are single-row, ready-to-fit units comprising a solid outer ring, an inner ring extended on one or both sides, cages made from plastic or sheet steel and seals of type P, R, L or T. Bearings with an inner ring extended on both sides undergo less tilting of the inner ring and therefore run more smoothly. The outer ring has a spherical or cylindrical outside surface. In combination with an INA housing matched to the design, bearings with a spherical outside surface can compensate for misalignment of the shaft.
INA Radial Insert Ball Bearing, Series: GLE-XL-KRR-B, 35 mm Bore, 72 mm OD, 1 Rows, 37.7 mm Width, Double Seal Closure, 27500 N Load, Steel Bearing, NBR/PTFE Seal, Steel Cage, 120 deg C, Uncoated
| Bearing Material | : | Steel |
| Bore Diameter | : | 35 mm |
| Cage Material | : | Steel |
| Closure Type | : | Double Seal |
| Finish | : | Uncoated |
| Load Capacity | : | 27500 N |
| Number of Rows | : | 1 |
| Outside Diameter | : | 72 mm |
| Seal Material | : | NBR/PTFE |
| Series | : | GLE-XL-KRR-B |
| Temperature Rating | : | 120 deg C |
| Width | : | 37.7 mm |
- Lip seals on both sides
- Two zinc-coated sheet steel washers extended outwards and angled downwards with intermediate NBR or PTFE part and radially preloaded seal lip
- Bearing with spherical outer ring
- Cages are made from corrosion-resistant steel
- Spherical outer ring, non-locating bearing, drive slot in inner ring, R type seals on both sides
- X-life design
- 27500 N dynamic/15300 N static
