INA GE35-XL-KRR-B INAGE35XLKRRB
  1. pin-int

INA GE35-XL-KRR-B INAGE35XLKRRB

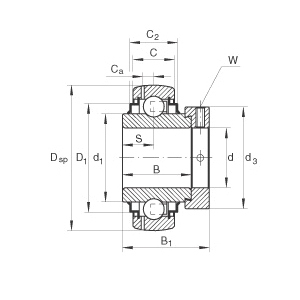

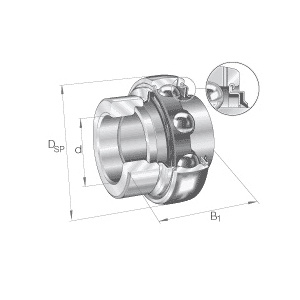

INA GE35-XL-KRR-B GE..-KRR-B Radial Insert Ball Bearing, 35 mm Dia Bore, 72 mm OD, 1 Rows, 51.3 mm W, 27500 N Dynamic/15300 N Static/770 N Fatigue Load

  • Manufacturer: Schaeffler Group
  • Brand Name: INA
  • Part Number: INAGE35XLKRRB
  • Alt Part Number: GE35-KRR-B
  • MPN: GE35-XL-KRR-B
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

INA Radial Insert Ball Bearing, Series: GE..-KRR-B, 35 mm Bore, 72 mm OD, 1 Rows, 51.3 mm Width, Double Seal Closure, 27500 N Dynamic/15300 N Static/770 N Fatigue Load, Steel Bearing, Buna-N Seal, Polyamide 66 Cage, -20 to 120 deg C, Uncoated

Bearing Material      :      Steel
Bore Diameter      :      35 mm
Cage Material      :      Polyamide 66
Closure Type      :      Double Seal
Finish      :      Uncoated
Load Capacity      :      27500 N Dynamic/15300 N Static/770 N Fatigue
Number of Rows      :      1
Outside Diameter      :      72 mm
Seal Material      :      Buna-N
Series      :      GE..-KRR-B
Temperature Rating      :      -20 to 120 deg C
Width      :      51.3 mm
  • Spherical outer ring
  • Location by eccentric locking collar
  • R seals on both sides
  • Set screw locking
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/INA_DKLFA2590_2RS_Catalog.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/INA_GE35_L_KRR_B_Specification_Sheet.pdf
