INA E30-XL-KLL INAE30XLKLL
  1. pin-int

INA E30-XL-KLL INAE30XLKLL

INA E30-XL-KLL E..-KLL Radial Insert Ball Bearing, 30 mm Dia Bore, 62 mm OD, 1 Rows, 48.5 mm W, 20700 N Dynamic/11300 N Static/570 N Fatigue Load

  • Manufacturer: Schaeffler Group
  • Brand Name: INA
  • Part Number: INAE30XLKLL
  • Alt Part Number: E30-KLL
  • MPN: E30-XL-KLL
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

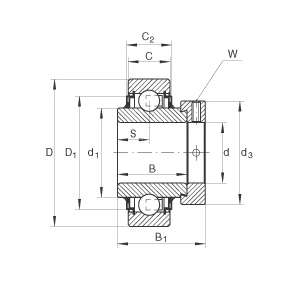

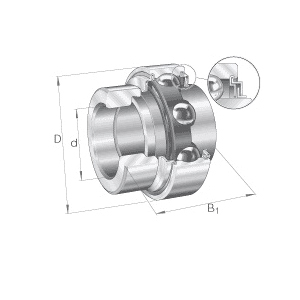

INA Radial Insert Ball Bearing, Series: E..-KLL, 30 mm Bore, 62 mm OD, 1 Rows, 48.5 mm Width, Double Seal Closure, 20700 N Dynamic/11300 N Static/570 N Fatigue Load, Polyamide 66 Cage, -20 to 120 deg C

Bore Diameter      :      30 mm
Cage Material      :      Polyamide 66
Closure Type      :      Double Seal
Load Capacity      :      20700 N Dynamic/11300 N Static/570 N Fatigue
Number of Rows      :      1
Outside Diameter      :      62 mm
Series      :      E..-KLL
Temperature Rating      :      -20 to 120 deg C
Width      :      48.5 mm
  • Cylindrical outer ring
  • Location by eccentric locking collar
  • L seals on both sides
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/INA_E30_L_KLL_Specification_Sheet.pdf
