INA BK1612 INABK1612
  1. pin-int

INA BK1612 INABK1612

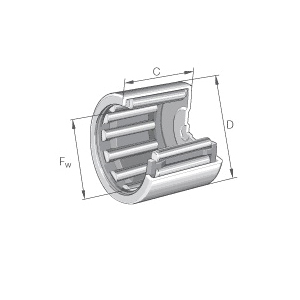

INA BK1612 BK Series Drawn Cup Needle Roller Bearing With Closed End, 16 mm Dia Bore, 22 mm OD, 1 Row, 12 mm W, 7600 N Dynamic/9700 N Static/1160 N Fatigue Load

  • Manufacturer: Schaeffler Group
  • Brand Name: INA
  • Part Number: INABK1612
  • MPN: BK1612
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

INA Drawn Cup Needle Roller Bearing, Series: BK Series, 16 mm Bore Dia, 22 mm Outside Dia, 1 Row, 12 mm W, Open Closure, 7600 N Dynamic/9700 N Static/1160 N Fatigue, Steel Cage, 15600 rpm Maximum, 140 deg C

Bore Diameter      :      16 mm
Cage Material      :      Steel
Closure Type      :      Open
Load Capacity      :      7600 N Dynamic/9700 N Static/1160 N Fatigue
Maximum Speed      :      15600 rpm
Number of Rows      :      1
Outside Diameter      :      22 mm
Series      :      BK Series
Temperature Rating      :      140 deg C
Width      :      12 mm
  • Deep drawn shell design for maximum capacity in the minimum radial space
  • Cage guided needle rollers for low friction, whole roller loading and high speeds
  • With one end closed for shaft end locations to improve sealing
  • Easily mounted without snap rings or shoulders
