INA BK1210 INABK1210
  1. pin-int

INA BK1210 INABK1210

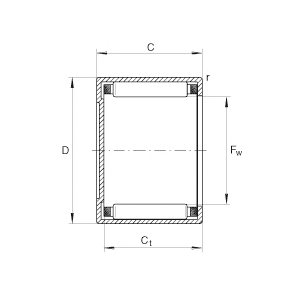

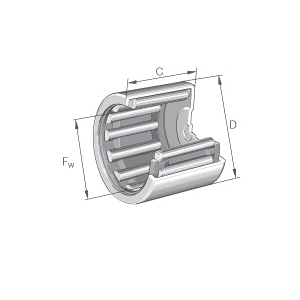

INA BK1210 BK Series Drawn Cup Needle Roller Bearing With Closed End, 12 mm Dia Bore, 16 mm OD, 1 Row, 10 mm W, 4950 N Dynamic/6200 N Static/800 N Fatigue Load

  • Manufacturer: Schaeffler Group
  • Brand Name: INA
  • Part Number: INABK1210
  • MPN: BK1210
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

INA Drawn Cup Needle Roller Bearing, Series: BK Series, 12 mm Bore Dia, 16 mm Outside Dia, 1 Row, 10 mm W, Open Closure, 4950 N Dynamic/6200 N Static/800 N Fatigue, Steel Cage, 20700 rpm Maximum, 140 deg C

Bore Diameter      :      12 mm
Cage Material      :      Steel
Closure Type      :      Open
Load Capacity      :      4950 N Dynamic/6200 N Static/800 N Fatigue
Maximum Speed      :      20700 rpm
Number of Rows      :      1
Outside Diameter      :      16 mm
Series      :      BK Series
Temperature Rating      :      140 deg C
Width      :      10 mm
  • Deep drawn shell design for maximum capacity in the minimum radial space
  • Cage guided needle rollers for low friction, whole roller loading and high speeds
  • With one end closed for shaft end locations to improve sealing
  • Easily mounted without snap rings or shoulders
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/INA_BK1210_Specification_Sheet.pdf
