INA AXK0414-TV INAAXK0414TV

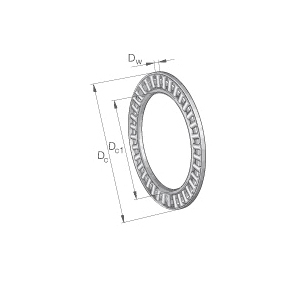

INA AXK0414-TV Axial Needle Roller and Cage Assembly, 4 mm Dia Bore, 14 mm OD, 2 mm W, 4 to 160 mm Dia Shaft
- Manufacturer: Schaeffler Group
- Brand Name: INA
- Part Number: INAAXK0414TV
- MPN: AXK0414-TV
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
INA Axial Needle Roller and Cage Assembly, Series: AXK Series, 4 mm Bore, 14 mm OD, 2 mm Width, For Shaft Diameter: 4 to 160 mm, 4400 N Dynamic/8000 N Static/940 N Fatigue Load, 21500 rpm Maximum, -20 to 120 deg C
| Bore Diameter | : | 4 mm |
| For Shaft Diameter | : | 4 to 160 mm |
| Load Capacity | : | 4400 N Dynamic/8000 N Static/940 N Fatigue |
| Maximum Speed | : | 21500 rpm |
| Outside Diameter | : | 14 mm |
| Series | : | AXK Series |
| Temperature Rating | : | -20 to 120 deg C |
| Width | : | 2 mm |
- Single direction
Specification Sheet
