INA 81118-TV INA81118TV

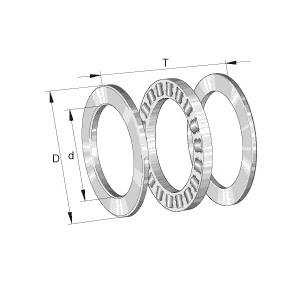

INA 81118-TV Axial Cylindrical Roller Bearing, 90 mm Dia Bore, 120 mm OD, 22 mm W, 141000 N Dynamic/465000 N Static Axial/40000 N Fatigue Load

  • Manufacturer: Schaeffler Group
  • Brand Name: INA
  • Part Number: INA81118TV
  • MPN: 81118-TV
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

INA Axial Cylindrical Roller Bearing, Series: 811 Series, 90 mm Bore Dia, 120 mm Outside Dia, 22 mm Width, 141000 N Dynamic/465000 N Static Axial/40000 N Fatigue, Plastic Cage, 2750 rpm Maximum, -20 to 120 deg C

Bore Diameter      :      90 mm
Cage Material      :      Plastic
Load Capacity      :      141000 N Dynamic/465000 N Static Axial/40000 N Fatigue
Maximum Speed      :      2750 rpm
Outside Diameter      :      120 mm
Series      :      811 Series
Temperature Rating      :      -20 to 120 deg C
Width      :      22 mm
  • Plastic cage made from glass fiber reinforced polyamide 66
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/INA_81118_TV_Specification_Sheet.pdf
