IKO TRU405930UU IKOTRU405930UU

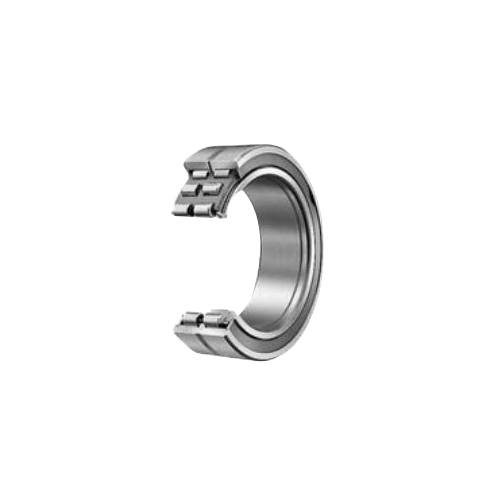

IKO TRU405930UU Metric Series Caged Heavy Duty Roller Bearing With Oil Hole, 40 mm Dia Bore, 59 mm OD, 2 Rows, 30 mm W, 34700 N Dynamic/62500 N Static Load
- Manufacturer: IKO International
- Brand Name: IKO
- Part Number: IKOTRU405930UU
- MPN: TRU405930UU
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
IKO designs and develops compact Roller Bearings for use in heavy-duty machinery such as construction equipment and industrial machines. Three styles are available for different applications - caged, uncaged and Roller Bearings for sheaves. Caged Roller Bearings are designed for high speeds and variable loads. Due to the axial distance between double rollers, large moment loads are supported.
IKO Roller Bearing, Caged Heavy Duty, Series: TRU Metric Series, 40 mm Bore, 59 mm OD, 2 Rows, 30 mm Width, Double Seal Closure, 34700 N Dynamic/62500 N Static Load, High Carbon Steel Bearing, Synthetic Resin Rubber Seal, 4000 rpm Maximum, -20 to 120 deg C
| Bearing Material | : | High Carbon Steel |
| Bore Diameter | : | 40 mm |
| Closure Type | : | Double Seal |
| Load Capacity | : | 34700 N Dynamic/62500 N Static |
| Maximum Speed | : | 4000 rpm |
| Number of Rows | : | 2 |
| Outside Diameter | : | 59 mm |
| Seal Material | : | Synthetic Resin Rubber |
| Series | : | TRU Metric Series |
| Temperature Rating | : | -20 to 120 deg C |
| Type | : | Caged Heavy Duty |
| Width | : | 30 mm |
- Compact footprint, similar to Needle Roller Bearings
- Non-separable, rugged construction featuring two rows of rollers
- Heavy duty design, built to withstand both radial and axial loads
- With seals on both side
