IKO ST203245 IKOST203245
IKO ST203245 Metric Series Ordinary Stroke Rotary Bushing, Open Closure, 20 mm Dia Shaft, 32 mm OD, 45 mm L
- Manufacturer: IKO International
- Brand Name: IKO
- Part Number: IKOST203245
- MPN: ST203245
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:

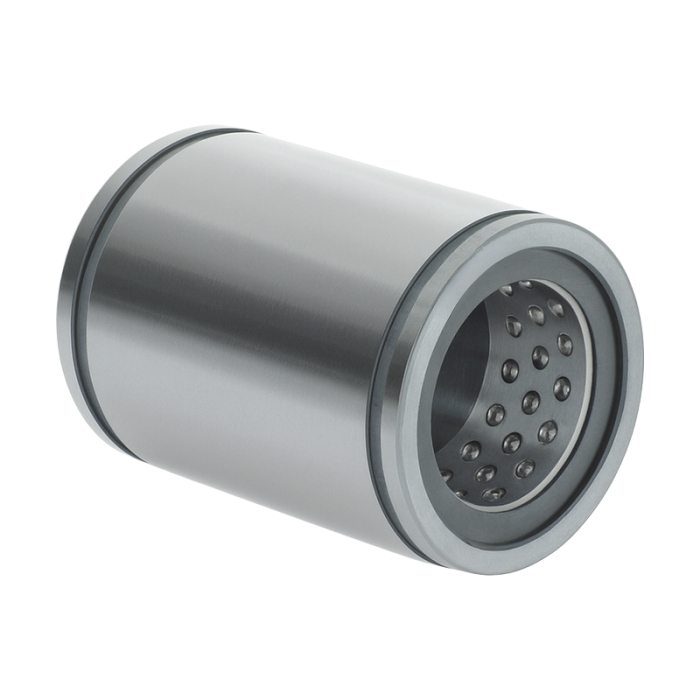

Stroke Rotary Bushings (ST) enable simultaneous rotary and linear motion with a specialized design that combines an external cylinder with a cylindrical raceway and balls incorporated in the retainer. The high rigid, lightweight retainer experiences minimal inertia and is well suited for both rolling and reciprocal motion during high speed operation.
IKO Stroke Rotary Bushing, Ordinary, Series: ST Metric Series, 20 mm Shaft Diameter, 32 mm OD, 45 mm Length, Open Closure, 1390 N Dynamic/1250 N Static Load, Steel Bearing, 120 deg C
| Bearing Material | : | Steel |
| Closure Type | : | Open |
| Length | : | 45 mm |
| Load Capacity | : | 1390 N Dynamic/1250 N Static |
| Outside Diameter | : | 32 mm |
| Series | : | ST Metric Series |
| Shaft Diameter | : | 20 mm |
| Temperature Rating | : | 120 deg C |
| Type | : | Ordinary |
- Miniature Stroke Rotary Bushings (STSI) feature tiny balls incorporated in a retainer and an external cylinder
