IKO RNA6912UU IKORNA6912UU

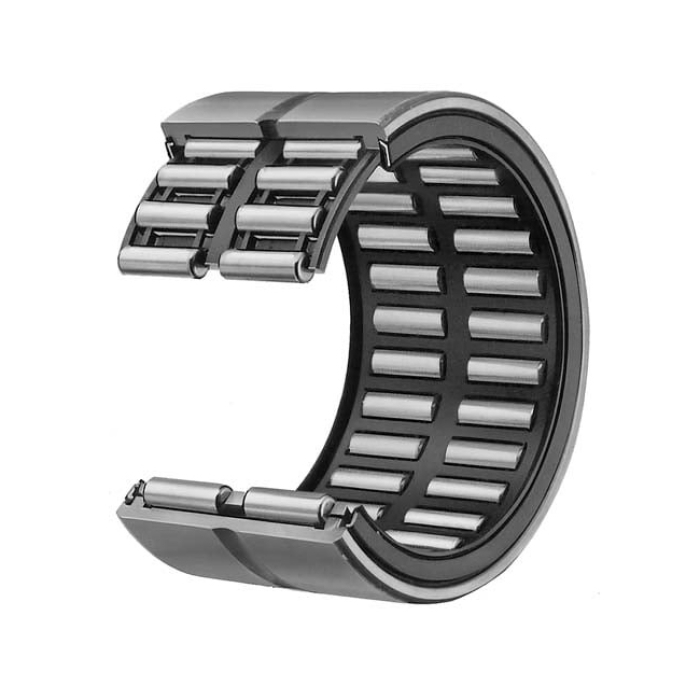

IKO RNA6912UU Metric Series Caged Machined Needle Roller Bearing With Oil Hole, 68 mm Dia Bore, 85 mm OD, 45 mm W, 93400 N Dynamic/186000 N Static Load

  • Manufacturer: IKO International
  • Brand Name: IKO
  • Part Number: IKORNA6912UU
  • MPN: RNA6912UU
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

IKO manufactures a wide range of radial Needle Roller Bearings to meet the needs of different applications and machine profiles. These include shell type bearings, needle roller cages for both general use and within engine connecting rods and machined type Needle Roller Bearings. Machined type Needle Roller Bearings feature low sectional height and large load ratings. A highly rigid outer ring makes these bearings ideal for light alloy housings as well.

IKO Needle Roller Bearing, Caged Machined, Series: RNA69 Metric Series, 68 mm Bore, 85 mm OD, 45 mm Width, Double Seal Closure, 93400 N Dynamic/186000 N Static Load, High Carbon Steel Bearing, Synthetic Rubber Seal, 3000 rpm Maximum

Bearing Material      :      High Carbon Steel
Bore Diameter      :      68 mm
Closure Type      :      Double Seal
Load Capacity      :      93400 N Dynamic/186000 N Static
Maximum Speed      :      3000 rpm
Outside Diameter      :      85 mm
Seal Material      :      Synthetic Rubber
Series      :      RNA69 Metric Series
Type      :      Caged Machined
Width      :      45 mm
  • Item Features 01=Suitable for a wide range of conditions including heavy loads requiring either high-speed or low-speed rotation
  • Item Features 02=Design choices include bearings with or without inner rings, ringless style uses a shaft as the raceway for a streamlined, compact footprint
  • Item Features 03=With seals on both side
  • Item Features 04=Without inner ring
  • Item Features 05=Pre-packed grease
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IKO_BR101812_Catalog.pdf
