IKO RNA4928 IKORNA4928
  1. pin-int

IKO RNA4928 IKORNA4928

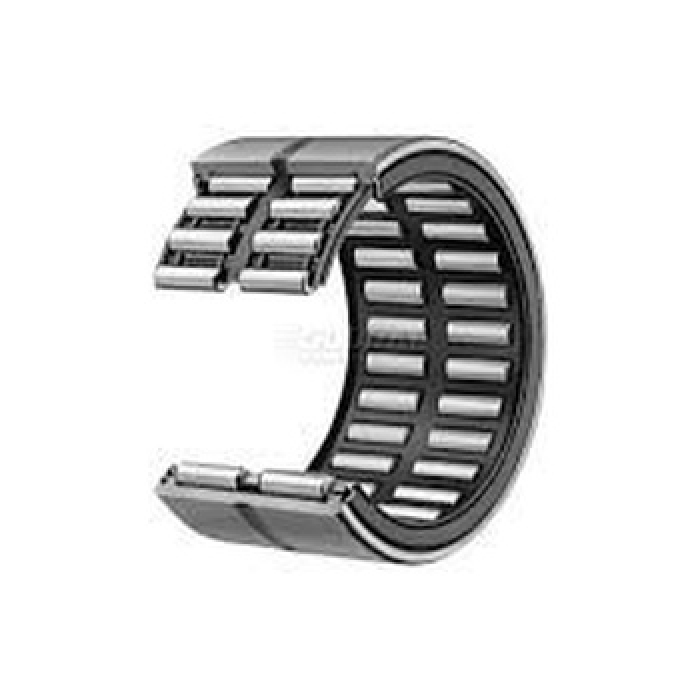

IKO RNA4928 Metric Series Caged Machined Needle Roller Bearing With Oil Hole, 160 mm Dia Bore, 190 mm OD, 1 Row, 50 mm W, 224000 N Dynamic/580000 N Static Load

  • Manufacturer: IKO International
  • Brand Name: IKO
  • Part Number: IKORNA4928
  • MPN: RNA4928
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

IKO manufactures a wide range of radial Needle Roller Bearings to meet the needs of different applications and machine profiles. These include shell type bearings, needle roller cages for both general use and within engine connecting rods and machined type Needle Roller Bearings. Machined type Needle Roller Bearings feature low sectional height and large load ratings. A highly rigid outer ring makes these bearings ideal for light alloy housings as well.

IKO Needle Roller Bearing, Caged Machined, Series: RNA49 Metric Series, 160 mm Bore, 190 mm OD, 1 Row, 50 mm Width, Open Closure, 224000 N Dynamic/580000 N Static Load, High Carbon Steel Bearing, 2500 rpm Maximum

Bearing Material      :      High Carbon Steel
Bore Diameter      :      160 mm
Closure Type      :      Open
Load Capacity      :      224000 N Dynamic/580000 N Static
Maximum Speed      :      2500 rpm
Number of Rows      :      1
Outside Diameter      :      190 mm
Series      :      RNA49 Metric Series
Type      :      Caged Machined
Width      :      50 mm
  • Suitable for a wide range of conditions including heavy loads requiring either high-speed or low-speed rotation
  • Design choices include bearings with or without inner rings, ringless style uses a shaft as the raceway for a streamlined, compact footprint
  • Without inner ring
