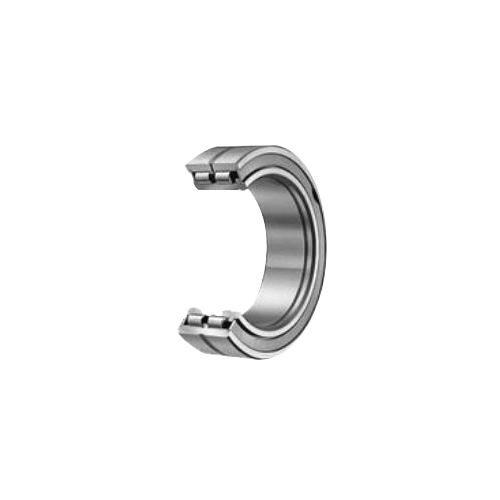

IKO NAG4903UU IKONAG4903UU
IKO NAG4903UU Metric Series Heavy Duty Uncaged Roller Bearing, 17 mm Dia Bore, 30 mm OD, 2 Rows, 13 mm W, 12300 N Dynamic/16500 N Static Load
- Manufacturer: IKO International
- Brand Name: IKO
- Part Number: IKONAG4903UU
- MPN: NAG4903UU
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
IKO designs and develops compact Roller Bearings for use in heavy-duty machinery such as construction equipment and industrial machines. Three styles are available for different applications - caged, uncaged and Roller Bearings for sheaves. Uncaged Roller Bearings handle low-speed rotations, oscillating motions and heavy loads.
IKO Roller Bearing, Heavy Duty Uncaged, Series: NAG Metric Series, 17 mm Bore, 30 mm OD, 2 Rows, 13 mm Width, Double Seal Closure, 12300 N Dynamic/16500 N Static Load, High Carbon Steel Bearing, 6500 rpm Maximum, -20 to 120 deg C
| Bearing Material | : | High Carbon Steel |
| Bore Diameter | : | 17 mm |
| Closure Type | : | Double Seal |
| Load Capacity | : | 12300 N Dynamic/16500 N Static |
| Maximum Speed | : | 6500 rpm |
| Number of Rows | : | 2 |
| Outside Diameter | : | 30 mm |
| Series | : | NAG Metric Series |
| Temperature Rating | : | -20 to 120 deg C |
| Type | : | Heavy Duty Uncaged |
| Width | : | 13 mm |
- Compact footprint, similar to Needle Roller Bearings
- Non-separable, rugged construction featuring two rows of rollers
- Heavy duty design, built to withstand both radial and axial loads
- Supports moment loads with a design similar to the caged style
- With seals on both side
- Without oil hole
