IKO LMB243848OP IKOLMB243848OP
  1. pin-int

IKO LMB243848OP IKOLMB243848OP

IKO LMB243848OP Inch Series Open Linear Bushing, 1-1/2 in Dia Shaft, 2-3/8 in OD, 3 in L

  • Manufacturer: IKO International
  • Brand Name: IKO
  • Part Number: IKOLMB243848OP
  • MPN: LMB243848OP
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

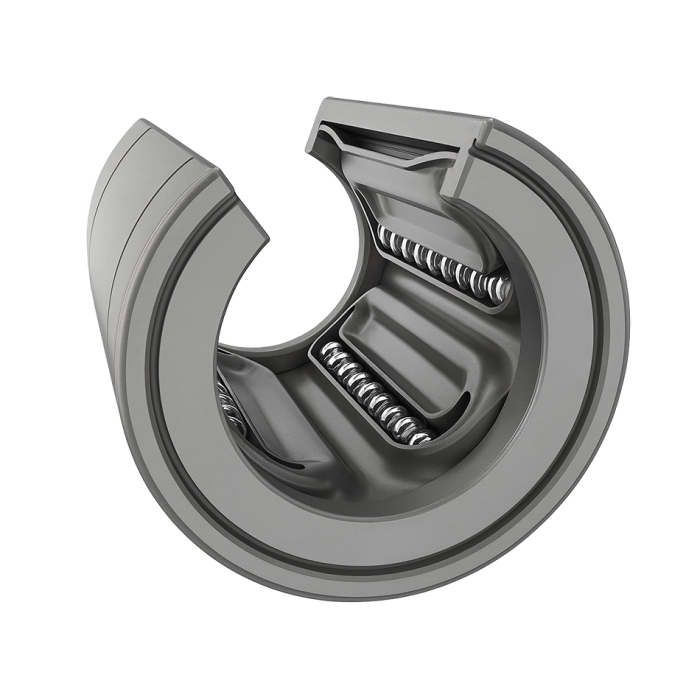

Linear Bushings (LM) feature a high precision design comprised of a rolling guide that travels along a shaft to achieve unlimited linear motion. A specialized retainer is used to accurately guide interior steel balls for low friction and highly stable linear motion.

IKO Linear Bushing, Open, Series: LMB Inch Series, 1-1/2 in Shaft Diameter, 2-3/8 in OD, 3 in Length, 2130 N Dynamic/4620 N Static Load, High Carbon Steel Bearing

Bearing Material      :      High Carbon Steel
Length      :      3 in
Load Capacity      :      2130 N Dynamic/4620 N Static
Outside Diameter      :      2-3/8 in
Series      :      LMB Inch Series
Shaft Diameter      :      1-1/2 in
Type      :      Open
  • Stainless steel versions for superior corrosion resistance
  • Without seals
  • High carbon steel retainer
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IKO_LM100150175_Catalog.pdf
