IKO GE45EC2RS IKOGE45EC2RS

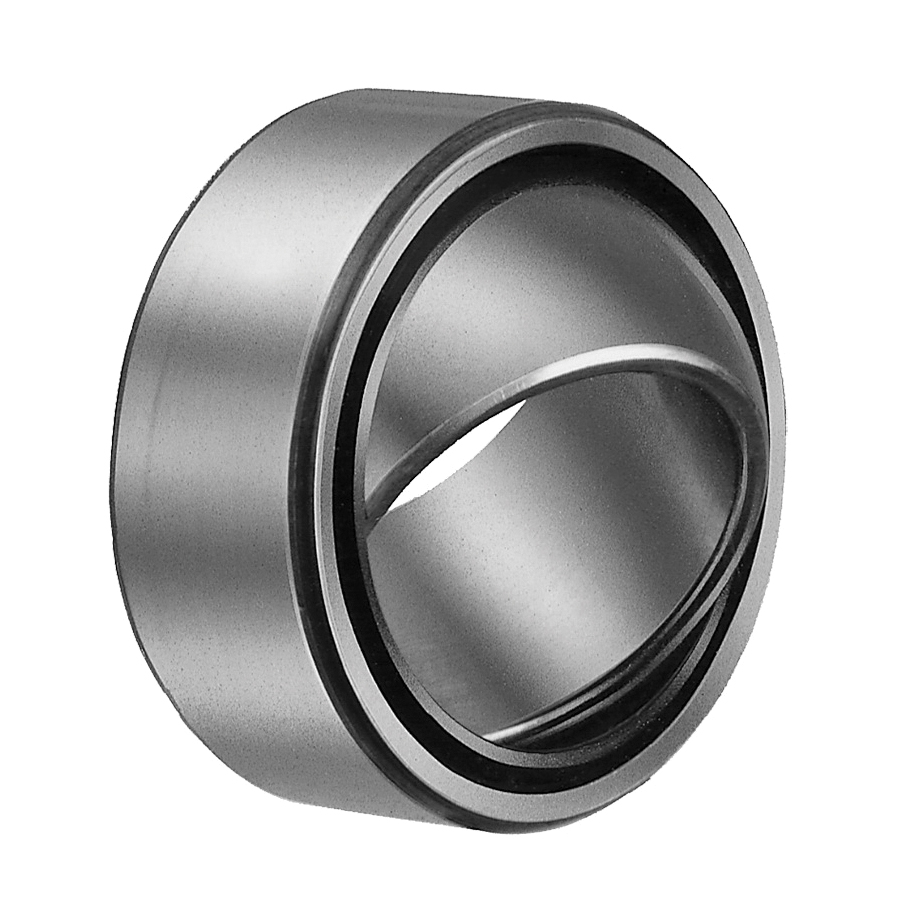

IKO GE45EC2RS Metric Series Maintenance-Free Spherical Bushing, 45 mm Dia Bore, 68 mm OD, 32 mm W, 147000 N Dynamic/686000 N Static Load
- Manufacturer: IKO International
- Brand Name: IKO
- Part Number: IKOGE45EC2RS
- MPN: GE45EC2RS
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
These bushings are well-suited for applications with fixed directional loads or where lubrication isn't possible or desirable such as in food processing machinery, construction equipment and applications where oil is undesirable or lubrication is difficult.
IKO Spherical Bushing, Maintenance-Free, Series: GE-EC Metric Series, 45 mm Bore, 68 mm OD, 32 mm Width, Double Seal Closure, 147000 N Dynamic/686000 N Static Load, High Carbon Steel Bearing, Synthetic Resin Seal, -30 to 80 deg C, Chromium Plated
| Bearing Material | : | High Carbon Steel |
| Bore Diameter | : | 45 mm |
| Closure Type | : | Double Seal |
| Finish | : | Chromium Plated |
| Load Capacity | : | 147000 N Dynamic/686000 N Static |
| Outside Diameter | : | 68 mm |
| Seal Material | : | Synthetic Resin |
| Series | : | GE-EC Metric Series |
| Temperature Rating | : | -30 to 80 deg C |
| Type | : | Maintenance-Free |
| Width | : | 32 mm |
- Durable outer rings feature PTFE liners reinforced with copper alloy meshes on sliding surfaces
- Spherical inner rings feature hard chromium-plated sliding surfaces
- Effective wear resistance and small creep deformation ensure maintenance-free operation for extended periods
