IKO CFE30R IKOCFE30R

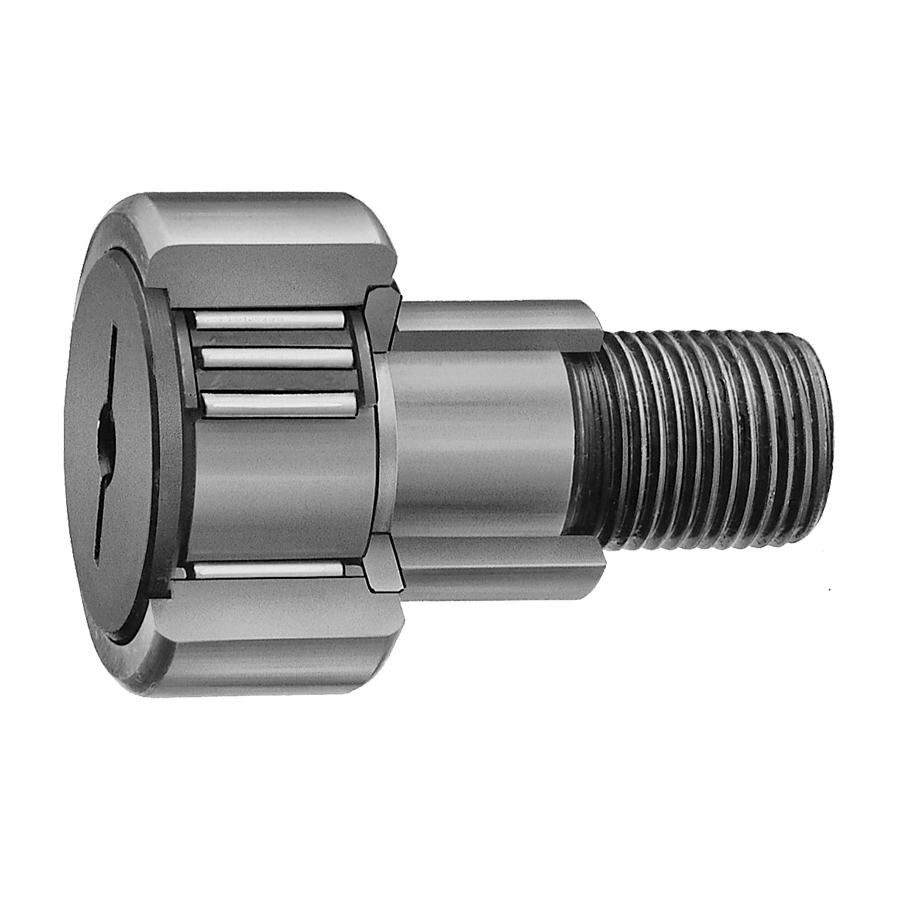

IKO designs and manufactures a broad selection of Cam Followers to meet the diverse needs of applications including machine tools, industrial robots, electronic parts production and office automation equipment. A Cam Follower is a bearing that incorporates needle style rollers between a stud and a thick outer ring.

IKO Cam Follower, Caged Eccentric Collar, Series: CFE Metric Series, 80 mm Roller Diameter, 35 mm Roller Width, 30 mm Stud Diameter, 63 mm Stud Length, M30x1.5 Thread, 30.5 mm Thread Length, 45400 N Dynamic/85100 N Static Load, -20 to 120 deg C, Shielded Closure, Screwdriver Slot Head, High Carbon Steel Roller

• Small coefficient of friction
• Excellent rotational performance designed for outer ring revolution
• High load capacity by design - radial gap is smaller than within the general needle roller bearings, alleviating impact load and increasing lifetime
• Easy attachment with either hexagon sockets or screw driver slots
• Eccentric Cam Followers feature an eccentric collar fixed to the stud, enabling easy positioning in the radial direction against the opposing track surface
• Eccentricity ranges from 0.4 to 1.5 mm
• Easy lubrication with oil supplied from the stud head with a hexagon socket design

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IKO_CF10_Catalog.pdf
