IKO CF101 IKOCF10-1

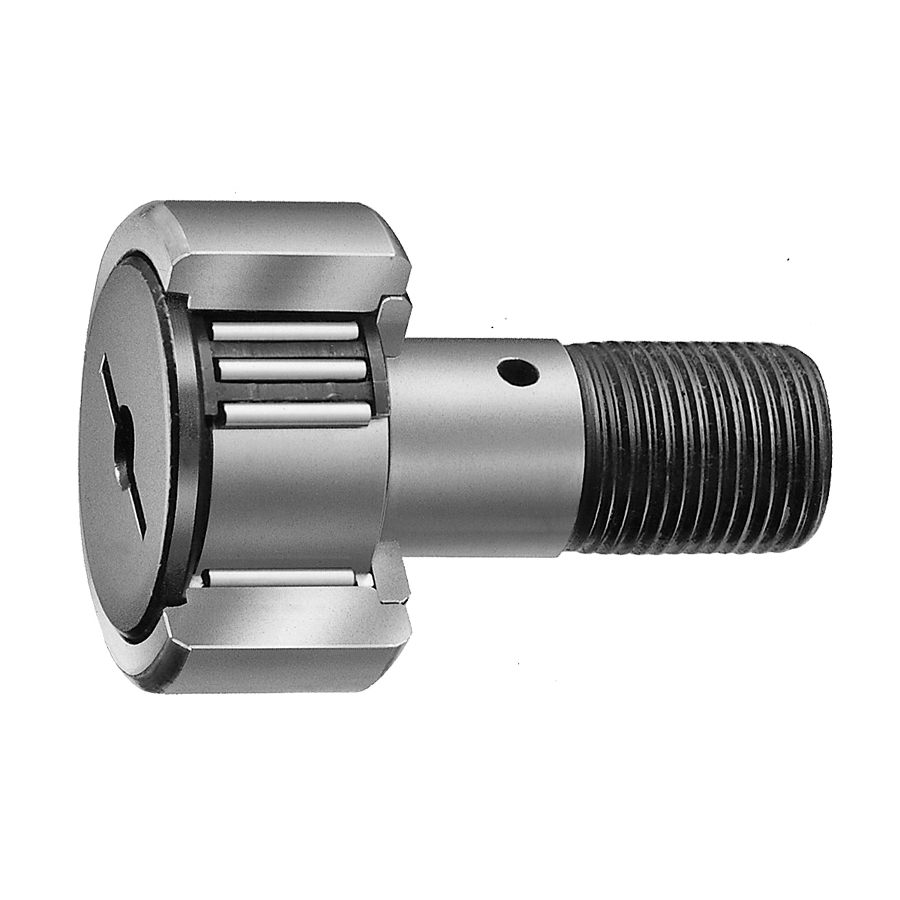

IKO CF101 Metric Series Caged Standard Cam Follower With Cylindrical Outer Ring, 26 mm Dia x 12 mm W Roller, 10 mm Dia x 23 mm L Stud, High Carbon Steel Roller
- Manufacturer: IKO International
- Brand Name: IKO
- Part Number: IKOCF10-1
- MPN: CF101
- Min. Order Qty: 1
- Qty. Interval: 1 Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
IKO designs and manufactures a broad selection of Cam Followers to meet the diverse needs of applications including machine tools, industrial robots, electronic parts production and office automation equipment. A Cam Follower is a bearing that incorporates needle style rollers between a stud and a thick outer ring.
IKO Cam Follower, Caged Standard, Series: CF Metric Series, 26 mm Roller Diameter, 12 mm Roller Width, 10 mm Stud Diameter, 23 mm Stud Length, M10x1.25 Thread, 12 mm Thread Length, 5430 N Dynamic/6890 N Static Load, -20 to 120 deg C, Shielded Closure, Screwdriver Slot Head, High Carbon Steel Roller
| Closure Type | : | Shielded |
| Head Type | : | Screwdriver Slot |
| Load Capacity | : | 5430 N Dynamic/6890 N Static |
| Roller Diameter | : | 26 mm |
| Roller Material | : | High Carbon Steel |
| Roller Width | : | 12 mm |
| Series | : | CF Metric Series |
| Stud Diameter | : | 10 mm |
| Stud Length | : | 23 mm |
| Temperature Rating | : | -20 to 120 deg C |
| Thread Length | : | 12 mm |
| Thread Size | : | M10x1.25 |
| Type | : | Caged Standard |
- Small coefficient of friction
- Excellent rotational performance designed for outer ring revolution
- High load capacity by design - radial gap is smaller than within the general needle roller bearings, alleviating impact load and increasing lifetime
- Easy attachment with either hexagon sockets or screw driver slots
- Standard Cam Followers are the basic style and suit a wide range of applications
- Easy lubrication with oil supplied from the stud head with a hexagon socket design
