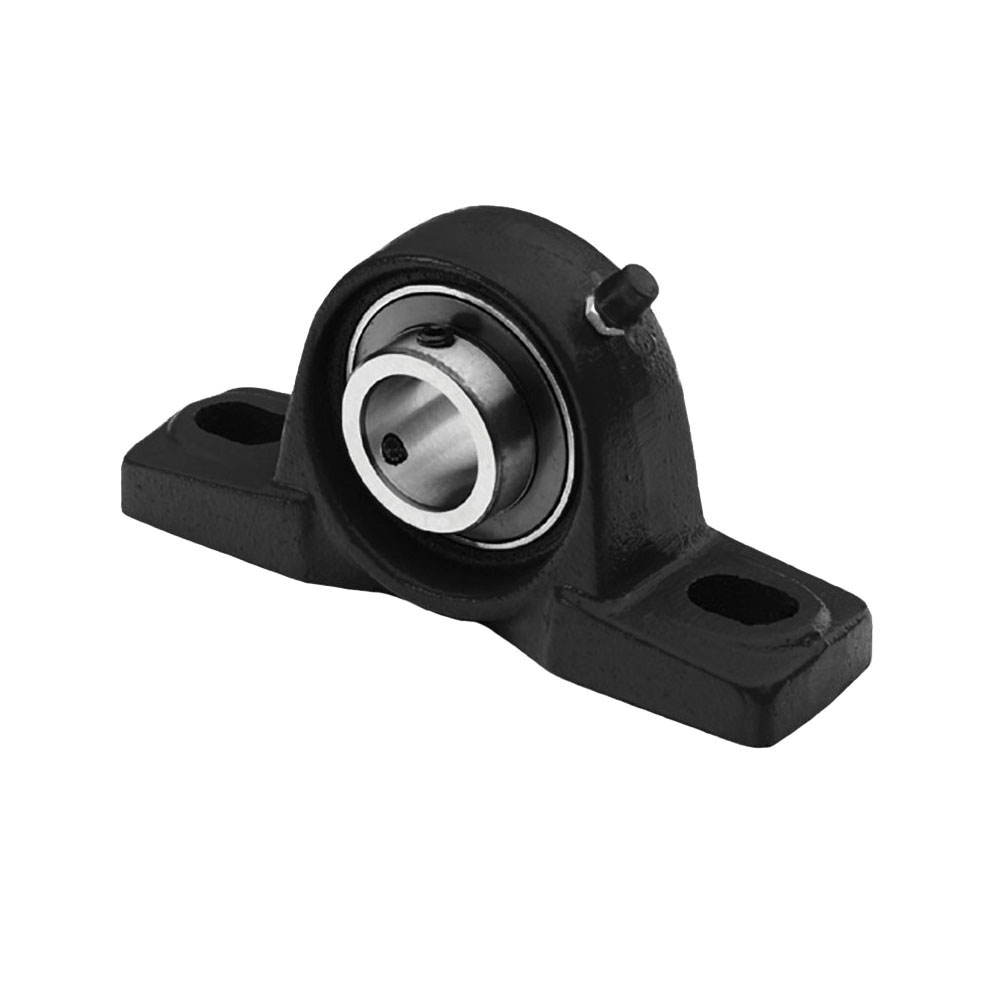

IDC Select® IDC UCP210-30 IDCUCP210-30

IDC Select® line of mounted bearings combines quality, innovation and affordability to give you the advantage you need. Whether your bearing needs are light, standard or medium duty, IDC Select® offers a wide variety of choices for your specific requirements. IDC Select® mounted units feature a cast iron housing with a solid base, a wide inner ring bearing, dual heavy duty contact seals and steel plate slingers on both sides for dust exclusion. They also have full self-alignment, a grease fitting for adding lubricant and setscrew units which have two setscrews 120 deg apart in the inner ring. Eccentric locking collar units provide locking for one-directional applications. Triple lip seals are available on request.

IDC Select® Pillow Block, High Center Standard-Duty Solid Base, Series: UCP, 1-7/8 in Bore, 6-1/4 in Bolt Center-to-Center Length, 2-1/4 in Base to Bore Centerline, 8-1/8 in Overall Length, 4-29/64 in Overall Height, 2-3/8 in Base Width, Set Screw Locking Device, Dual Contact Seal, 7868.31 lb Load, -40 to 250 deg F, Cast Iron

• Dual heavy duty slinger type contact seals
• Cup point setscrews 120 deg apart lock unit securely to shaft
• Fully self-aligning
• 1-piece solid base cast iron housing
• 7868.31 lb dynamic/5215.57 lb static load capacity
