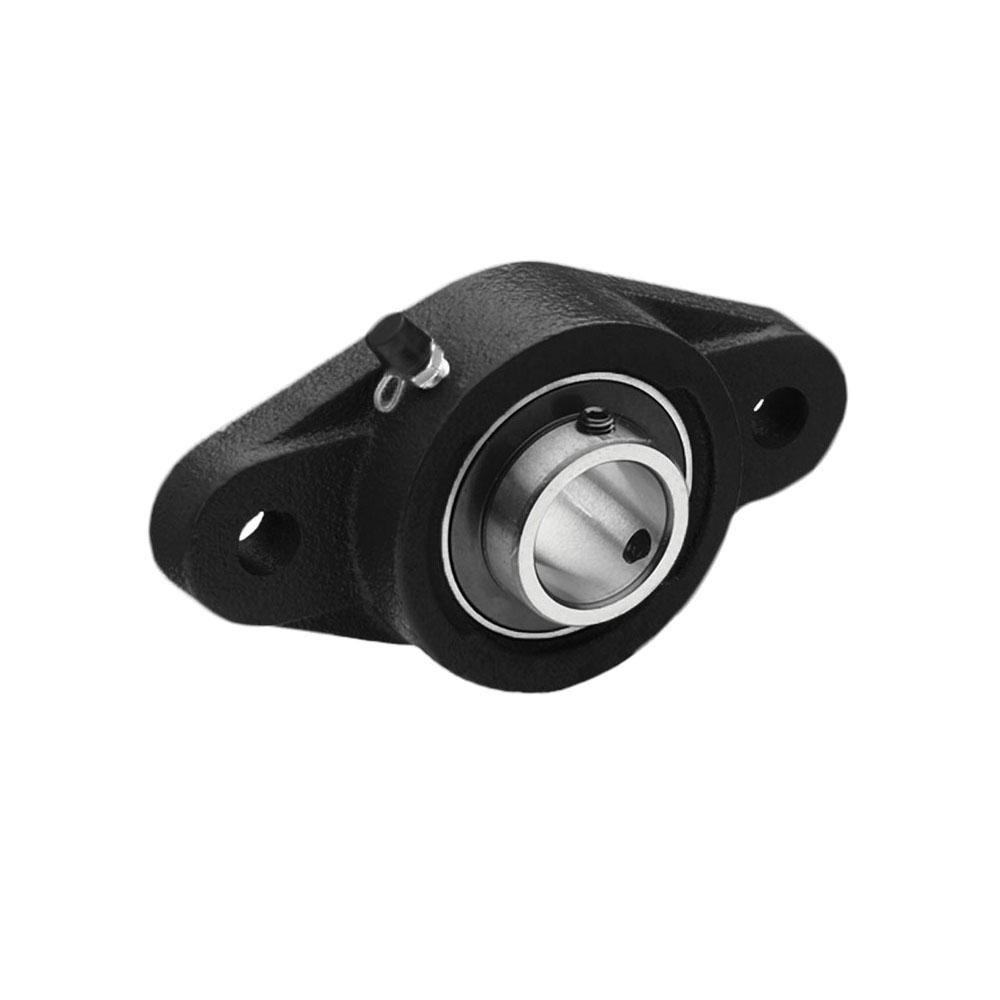

IDC Select® IDC UCFLX05-25MM IDCUCFLX05-25MM

IDC Select® mounted bearings combine quality, innovation and affordability. Whether your bearing needs are light, standard or medium duty, IDC Select® offers a wide variety of options. Our mounted units feature a cast iron housing with a solid base, a wide inner ring bearing, dual heavy duty contact seals and steel plate slingers on both sides for dust exclusion. They also offer full self-alignment, a grease fitting for adding lubricant and set screw units with two setscrews 120 deg apart in the inner ring. Eccentric locking collar units provide locking for one directional applications. Triple lip seals are available on request. Washdown units are available in two versions. Stainless steel units have an electropolish finish and a thermoplastic (PBT) housing with a stainless steel insert.

IDC Select® Flange Mount Ball Bearing Unit, Medium Duty, Series: UCFLX, 25 mm Bore, 117 mm Bolt Center-to-Center Length, 2-Bolt Flange Mounting, 141 mm Overall Length/Diameter, 40.2 mm Overall Depth, 80 mm Overall Height, Set Screw Locking Device, Synthetic Rubber Seal, -40 to 250 deg F

• Cast iron housing
• Wide heat treated inner ring bearing for durability
• Dual heavy duty contact seals
• Steel plate slingers on both sides for dust exclusion
• Full self-alignment
• Grease fitting for adding lubricant
• Cup point setscrews 120 deg apart lock unit securely to shaft
• Anti-rotation pin
• Bearings are supplied 35 to 40% filled with lithium based NLGI #2 grease and should be relubricated with a compatible grease
