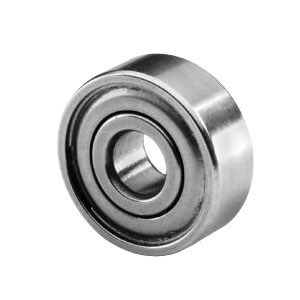

IDC Select® IDC SS6002 2RS IDCSS6002-2RS

IDC Select® radial ball bearings are produced to strict specification tolerances that are designed to meet or exceed USA industry standards. All product series are produced in ISO certified factories with automated production assembly lines that are ISO/TS16949 certified. All IDC Select® products are 100% noise tested to meet factory electric motor quality noise levels. Standard radial series 6000, 6200 and 6300 are produced as standard C3 clearance and all products are supplied with 25 to 35% fill Polyrex EM grease or equal. All products are certified to ANSI/ABMA ABEC 1 tolerance with most meeting ABEC 3 tolerances based on the automated production processes. Forging and heat treatment are done in house and all bearings are heat stabilized to 250 deg F. Grade 10 balls are used on the small sizes up to 50 mm bore and grade 25 balls are used on all sizes over 50 mm bore. Standard series products are produced with SAE 52100 steel. Sizes offered in stainless steel are produced with 440C steel. Seals are produced from NBR rubber with a steel backing.

IDC Select® Deep Groove Ball Bearing, Extra Light Duty, Series: 6000, 15 mm Bore, 32 mm OD, 1 Rows, 9 mm Width, Double Seal Closure, 1260 lb Load, AISI 440C Stainless Steel Bearing, Rubber Seal, Stainless Steel Cage, 15000 rpm Grease/28000 rpm Oil Maximum, 250 deg F

• Deep groove ball bearings incorporate grooved raceways on both the inner ring and outer ring, which enable them to sustain moderate axial loads in both directions in addition to radial loads
• Balls are separated by steel cages, permitting high speed operation
• Sealed bearings feature contact lip seals that provide excellent protection from liquids and contamination
• C3 radial internal clearance
• FM222 H1 food grade grease
• 1260 lb dynamic/640 lb static load capacity

• Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDC_SELECT_IDC_1602_ZZ_Technical_Bulletin.pdf
