IDC Select® IDC SER207-35MM IDCSER207-35MM

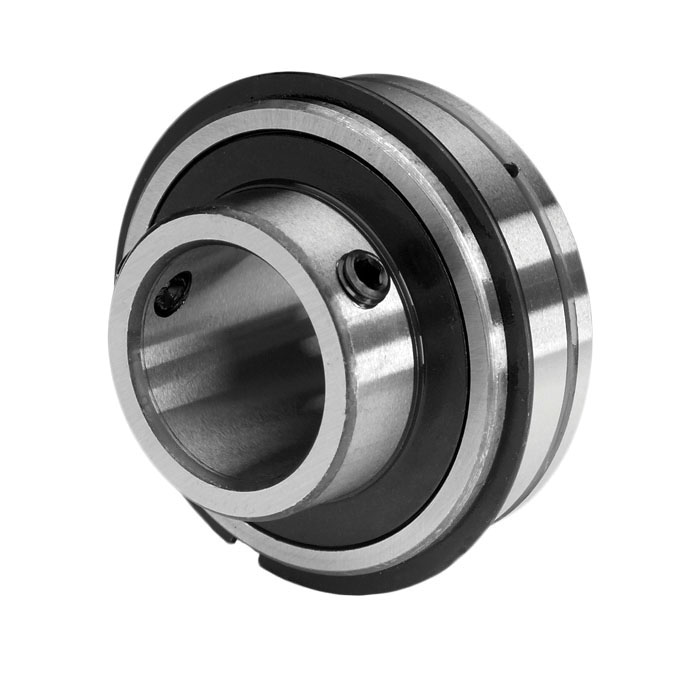

IDC Select® IDC SER207-35MM 207 Standard Duty Cylindrical OD Ball Bearing Insert, 35 mm Dia Bore, 72 mm OD, 42.9 mm W, 5780 lb Load
- Manufacturer: IDC Select
- Brand Name: IDC Select®
- Part Number: IDCSER207-35MM
- MPN: IDC SER207-35MM
- UPC: 887412090689
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
IDC Select® inserts are manufactured from high quality 52100 steel with deep groove precision honed raceways. Ball bearing inserts are used inside mounted unit housings. They are available in the most common spherical OD design to allow for misalignment and a cylindrical OD. Standard designs are lubricated with multi-purpose lithium based grease allowing re-lubrication. They also come with an anti-rotation pin.
IDC Select® Ball Bearing Insert, Standard Duty Cylindrical OD, Series: 207, 35 mm Bore, 72 mm OD, 42.9 mm Width, Dual Seal Closure, 5780 lb Load, 52100 Steel Bearing, Rubber Seal, -40 to 250 deg F
| Bearing Material | : | 52100 Steel |
| Bore Diameter | : | 35 mm |
| Closure Type | : | Dual Seal |
| Load Capacity | : | 5780 lb |
| Outside Diameter | : | 72 mm |
| Seal Material | : | Rubber |
| Series | : | 207 |
| Temperature Rating | : | -40 to 250 deg F |
| Type | : | Standard Duty Cylindrical OD |
| Width | : | 42.9 mm |
- Wide inner ring bearing
- Full-cover metal shroud seals
- Cup point setscrews 120 deg apart lock unit securely to shaft
- Setscrew locking, snap ring and lubrication groove with hole opposite setscrew side
- 5780 lb dynamic/3400 lb static load capacity
