IDC Select® IDC SAF528 IDCSAF528
  1. pin-int

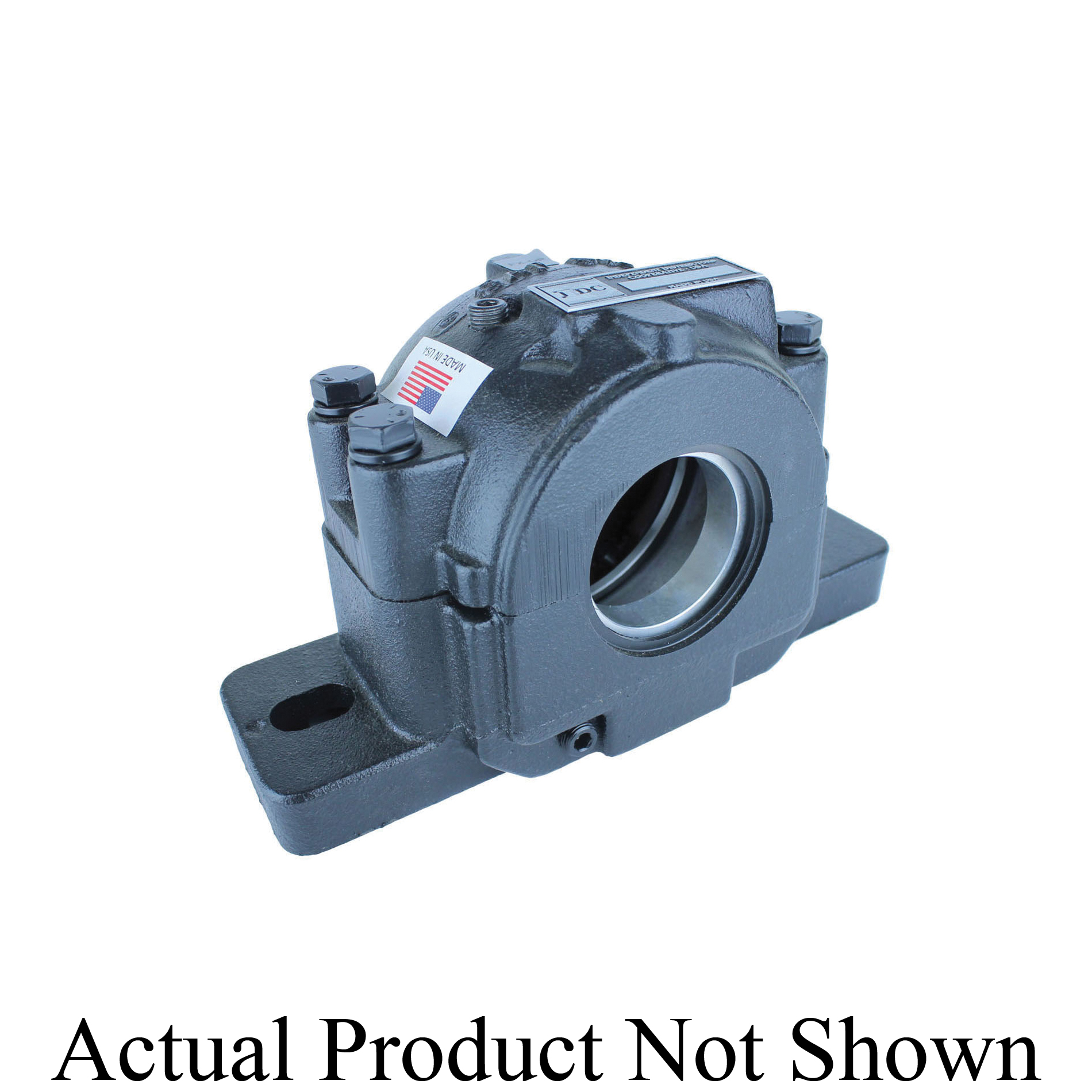

IDC Select® IDC SAF528 IDCSAF528

IDC Select® IDC SAF528 SAF 500 Split Pillow Block Housing, 4-15/16 in ID, Four-Bolt Base Mount, 6 in Base to Bore Centerline, 20-1/8 in OAL x 11-3/4 in OAH

  • Manufacturer: IDC Select
  • Brand Name: IDC Select®
  • Part Number: IDCSAF528
  • MPN: IDC SAF528
  • UPC: 887412123844
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

These split-block housed units accept self-aligning ball or spherical roller bearings with adapter sleeves. Units have separate matched caps and bases. They are available in rugged cast iron with two bolt (SAF) and four bolt (FSAF) base designs. SAF housings are supplied with standard LER rings and a stabilizing ring that can be removed to convert the unit from fixed to floating design.

IDC Select® Pillow Block Housing, Split, Series: SAF 500, 4-15/16 in ID, Four-Bolt Base Mounting, 6 in Base to Bore Centerline, 20-1/8 in Overall Length, 7-3/8 in Overall Width, 11-3/4 in Overall Height, Compatible Bore Diameter: 4-15/16 in, Compatible Bearing Type: 22228K Self-Aligning Ball Bearing, 16 to 17-1/8 in Bolt Center-to-Center Length, 5-7/8 in Base Width, Cast Iron

Base Width      :      5-7/8 in
Base to Bore Centerline      :      6 in
Bolt Center-to-Center Length      :      16 to 17-1/8 in
Compatible Bearing Type      :      22228K Self-Aligning Ball Bearing
Compatible Bore Diameter      :      4-15/16 in
Inside Diameter      :      4-15/16 in
Material      :      Cast Iron
Mounting Type      :      Four-Bolt Base
Overall Height      :      11-3/4 in
Overall Length      :      20-1/8 in
Overall Width      :      7-3/8 in
Series      :      SAF 500
Type      :      Split
  • Can use grease or oil lubrication
  • Bearing and adapter sleeve not included
  • Remove stabilizing ring to make bearing expansion style
