IDC Select® IDC SA202-10G IDCSA202-10G

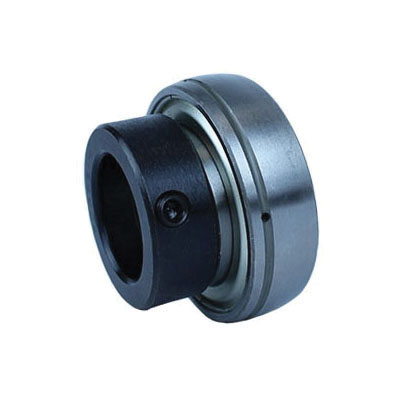

IDC Select® IDC SA202-10G 202 Light Duty Spherical OD Ball Bearing Insert, 5/8 in Dia Bore, 1.57 in OD, 1.13 in W, 2158.17 lb Load
- Manufacturer: IDC Select
- Brand Name: IDC Select®
- Part Number: IDCSA202-10G
- MPN: IDC SA202-10G
- UPC: 887412089232
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
IDC Select® inserts are manufactured from high quality 52100 steel with deep groove precision honed raceways. Ball bearing inserts are used inside mounted unit housings. They are available in the most common spherical OD design to allow for misalignment and a cylindrical OD. Standard designs are lubricated with multi-purpose lithium based grease allowing re-lubrication. They also come with an anti-rotation pin.
IDC Select® Ball Bearing Insert, Light Duty Spherical OD, Series: 202, 5/8 in Bore Dia, 1.57 in Outside Dia, 1.13 in Width, 2158.17 lb, 52100 Steel Bearing, -40 to 250 deg F
| Bearing Material | : | 52100 Steel |
| Bore Diameter | : | 5/8 in |
| Load Capacity | : | 2158.17 lb |
| Outside Diameter | : | 1.57 in |
| Series | : | 202 |
| Temperature Rating | : | -40 to 250 deg F |
| Type | : | Light Duty Spherical OD |
| Width | : | 1.13 in |
- Narrow inner ring bearing
- Full-cover metal shroud seals
- Eccentric locking collar and lubrication groove with hole on setscrew side
- 2158.17 lb dynamic/1034.12 lb static load capacity
