IDC Select® IDC RCSM-16 IDCRCSM-16

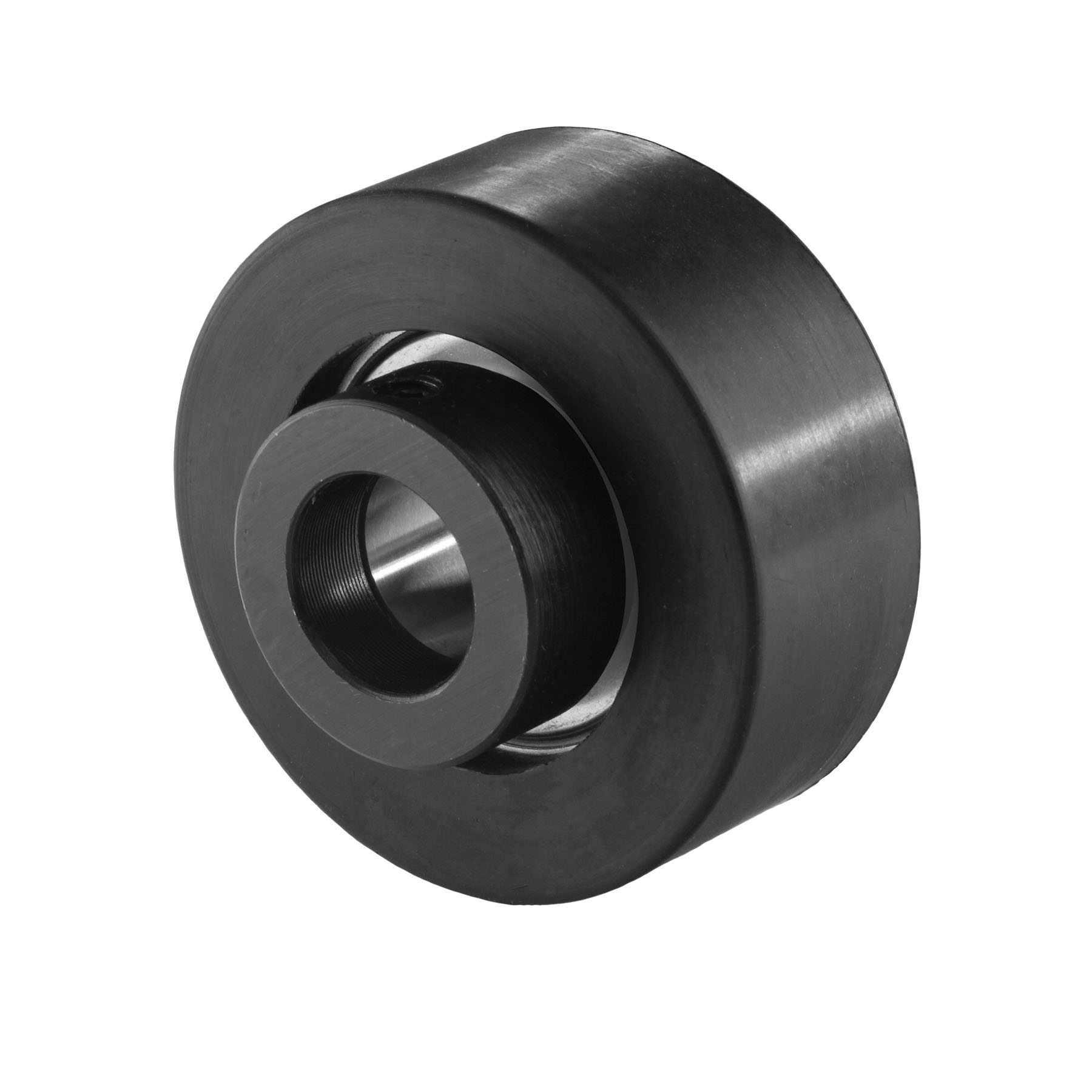

IDC Select® IDC RCSM-16 RCSM Cartridge Unit, 1 in Dia Bore, 2-17/32 in OD, 1-27/64 in W

  • Manufacturer: IDC Select
  • Brand Name: IDC Select®
  • Part Number: IDCRCSM-16
  • MPN: IDC RCSM-16
  • UPC: 887412091921
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Pricing and Availability

IDC Select® HVAC series units offer a conductive rubber interliner which helps dissipate static and reduce noise and vibration. Setscrew units have two setscrews 120 deg apart in the inner ring. Eccentric locking collar units provide locking for one-directional applications.

IDC Select® Cartridge Unit, Series: RCSM, 1 in Bore Dia, 2-17/32 in Outside Dia, 1-27/64 in Width, Rubber Cage, -40 to 250 deg F

Bore Diameter      :      1 in
Cage Material      :      Rubber
Load Capacity      :      3147 lb
Outside Diameter      :      2-17/32 in
Series      :      RCSM
Temperature Rating      :      -40 to 250 deg F
Width      :      1-27/64 in
  • Conductive rubber interliner
  • Used to dissipate static and reduce noise and vibration
  • Eccentric collar locking device
  • 3147 lb dynamic/1765 lb static load capacity
