IDC Select® IDC R18 2RS IDCR18-2RS

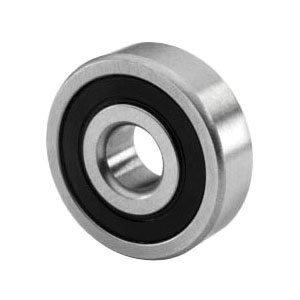

IDC Select® IDC R18 2RS R Series Miniature Deep Groove Ball Bearing, 1-1/8 in Dia Bore, 2-1/8 in OD, 1 Rows, 1/2 in W, 2810 lb Load
- Manufacturer: IDC Select
- Brand Name: IDC Select®
- Part Number: IDCR18-2RS
- MPN: IDC R18 2RS
- UPC: 887412104409
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
Deep groove ball bearings incorporate grooved raceways on both the inner ring and outer ring, which enable them to sustain moderate axial loads in both directions in addition to radial loads. Balls are separated by steel cages, permitting high-speed operation.
IDC Select® Deep Groove Ball Bearing, Miniature, Series: R Series, 1-1/8 in Bore, 2-1/8 in OD, 1 Rows, 1/2 in Width, Double Seal Closure, 2810 lb Load, SAE-52100 Chromium Steel Bearing, Rubber Seal, Steel Cage, 12000 rpm Grease/14000 rpm Oil Maximum, 250 deg F
| Bearing Material | : | SAE-52100 Chromium Steel |
| Bore Diameter | : | 1-1/8 in |
| Cage Material | : | Steel |
| Closure Type | : | Double Seal |
| Load Capacity | : | 2810 lb |
| Maximum Speed | : | 12000 rpm Grease/14000 rpm Oil |
| Number of Rows | : | 1 |
| Outside Diameter | : | 2-1/8 in |
| Seal Material | : | Rubber |
| Series | : | R Series |
| Temperature Rating | : | 250 deg F |
| Type | : | Miniature |
| Width | : | 1/2 in |
- Item Features 01=Mobil Polyrex™ EM lubricant
- Item Features 02=C3 radial internal clearance
- Item Features 03=Sealed bearings feature contact lip seals that provide excellent protection from liquids and contamination
- Item Features 04=2810 lb dynamic/1690 lb static load capacity
