IDC Select® IDC M-3 IDCM3

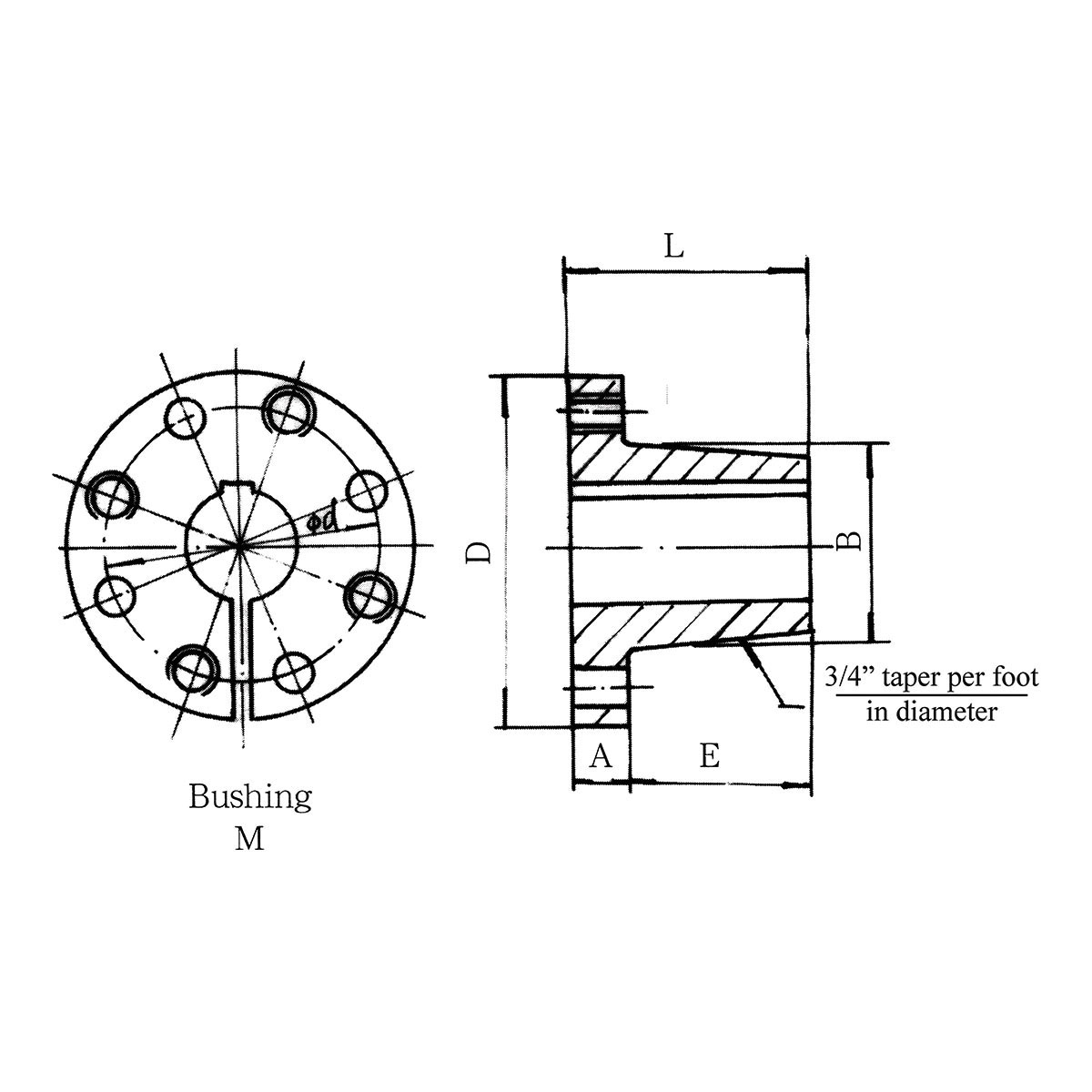

IDC Select® IDC M-3 Finished Bore QD® Bushing, 3 in Dia Bore, 6-1/2 in Dia Barrel, 9 in Dia Flange, 6-3/4 in OAL, Nodular Graphite Cast Iron

  • Manufacturer: IDC Select
  • Brand Name: IDC Select®
  • Part Number: IDCM3
  • MPN: IDC M-3
  • UPC: 887412022697
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

IDC Select® bushings are available in H, QD®, Taper-Lock®, and Split Taper™ designs and are available in inch and metric sizes. They are stocked in popular finished bore sizes. All IDC Select® bushings are fully interchangeable with industry standard design.

IDC Select® QD® Bushing, Finished Bore, 3 in Bore Dia, 6-1/2 in Barrel Dia, 7-7/8 in Bolt Circle, 9 in Flange Dia, 1-1/4 in Flange Thickness, 3/4-12 x 6-3/4 in Screw, 150 ft-lb, 6-3/4 in Overall Length, 3/4 x 3/8 in Keyway, Nodular Graphite Cast Iron

Barrel Diameter      :      6-1/2 in
Bolt Circle Diameter      :      7-7/8 in
Bore Diameter      :      3 in
Flange Diameter      :      9 in
Flange Thickness      :      1-1/4 in
Keyway Size      :      3/4 x 3/8 in
Material      :      Nodular Graphite Cast Iron
Overall Length      :      6-3/4 in
Screw Size      :      3/4-12 x 6-3/4 in
Torque Rating      :      150 ft-lb
Type      :      Finished Bore
  • Easy installation and dismount
  • Setscrew over keyway
  • Most sizes can be reverse mounted
  • Keystock provided with shallow key sizes
  • M size QD® bushing
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDC_SELECT_IDC_1VL025_1_2_Catalog.pdf
