IDC Select® IDC HC211-35G IDCHC211-35G

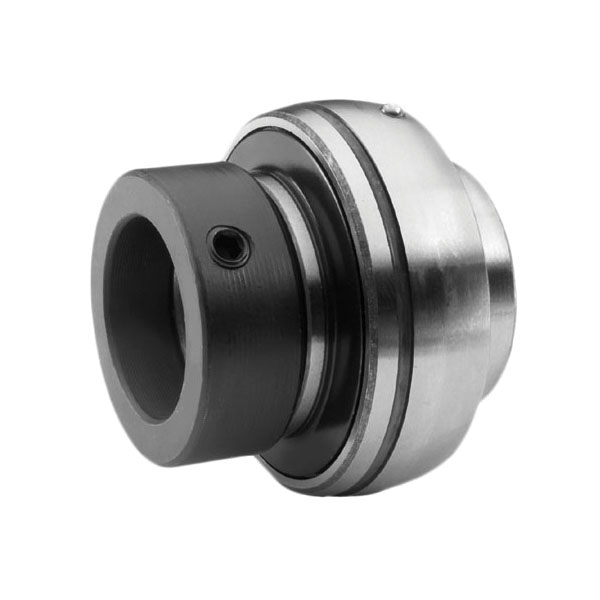

IDC Select® IDC HC211-35G 211 Standard Duty Spherical OD Ball Bearing Insert, 2-3/16 in Dia Bore, 3.937 in OD, 2.811 in W, 9779.19 lb Load
- Manufacturer: IDC Select
- Brand Name: IDC Select®
- Part Number: IDCHC211-35G
- MPN: IDC HC211-35G
- UPC: 887412087795
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
IDC Select® inserts are manufactured from high quality 52100 steel with deep groove precision honed raceways. Ball bearing inserts are used inside mounted unit housings. They are available in the most common spherical OD design to allow for misalignment and a cylindrical OD. Standard designs are lubricated with multi-purpose lithium based grease allowing re-lubrication. They also come with an anti-rotation pin.
IDC Select® Ball Bearing Insert, Standard Duty Spherical OD, Series: 211, 2-3/16 in Bore, 3.937 in OD, 2.811 in Width, Dual Seal Closure, 9779.19 lb Load, 52100 Steel Bearing, Rubber Seal, -40 to 250 deg F
| Bearing Material | : | 52100 Steel |
| Bore Diameter | : | 2-3/16 in |
| Closure Type | : | Dual Seal |
| Load Capacity | : | 9779.19 lb |
| Outside Diameter | : | 3.937 in |
| Seal Material | : | Rubber |
| Series | : | 211 |
| Temperature Rating | : | -40 to 250 deg F |
| Type | : | Standard Duty Spherical OD |
| Width | : | 2.811 in |
- Wide inner ring bearing
- Dual heavy duty slinger type contact seals
- Eccentric locking collar and lubrication groove with hole on setscrew side
- 9779.19 lb dynamic/6564.42 lb static load capacity
