IDC Select® IDC H60B13F-1-7/16 IDCH60B13F-1-7/16
IDC Select® IDC H60B13F-1-7/16 Finished Bore Type B Single Strand Roller Chain Sprocket, 1-7/16 in Dia Bore, 3.49 in OD, 60 Chain, 13 Teeth, 3/4 in Pitch, C1045 Steel
- Manufacturer: IDC Select
- Brand Name: IDC Select®
- Part Number: IDCH60B13F-1-7/16
- MPN: IDC H60B13F-1-7/16
- UPC: 887412037806
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
IDC Select® offers a wide range of high quality roller chain sprockets produced in ISO certified facilities to ANSI standards. Plain bore, finished bore, taper and QD® bushing designs are available. All IDC Select® sprockets come with hardened teeth and black oxide finish for long lasting service life. The finished bore design comes complete with a keyway on the centerline of the sprocket tooth and two setscrews, one over the keyway and one at 90 deg.

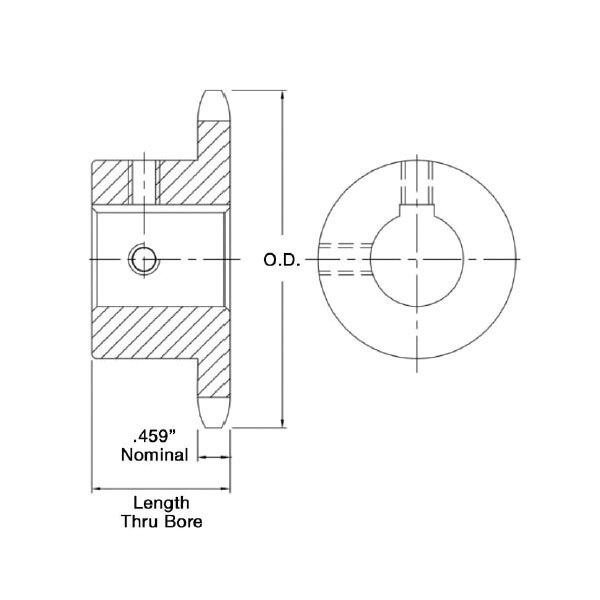

IDC Select® Single Strand Roller Chain Sprocket, Finished Bore Type B, 1-7/16 in Bore Dia, 3.49 in Outside Dia, 60 Chain, 13 Teeth, 3/4 in Pitch, 3.134 in, 3/8 in Screw, 3/8 in W x 3/16 in D Keyway, 1-1/4 in Length Through Bore, C1045 Steel, Black Oxide
| Bore Diameter | : | 1-7/16 in |
| Chain Size | : | 60 |
| Finish | : | Black Oxide |
| Keyway Size | : | 3/8 in W x 3/16 in D |
| Length Through Bore | : | 1-1/4 in |
| Material | : | C1045 Steel |
| Number of Teeth | : | 13 |
| Outside Diameter | : | 3.49 in |
| Pitch Diameter | : | 3.134 in |
| Pitch | : | 3/4 in |
| Screw Size | : | 3/8 in |
| Type | : | Finished Bore Type B |
- Hardened teeth for longer life
- Bored to size and ready to install
