IDC Select® IDC H50B22F-1-1/8 IDCH50B22F-1-1/8
IDC Select® IDC H50B22F-1-1/8 Finished Bore Type B Single Strand Roller Chain Sprocket, 1-1/8 in Dia Bore, 4.72 in OD, 50 Chain, 22 Teeth, 5/8 in Pitch, C1045 Steel
- Manufacturer: IDC Select
- Brand Name: IDC Select®
- Part Number: IDCH50B22F-1-1/8
- MPN: IDC H50B22F-1-1/8
- UPC: 887412033778
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
IDC Select® offers a wide range of high quality roller chain sprockets produced in ISO certified facilities to ANSI standards. Plain bore, finished bore, taper and QD® bushing designs are available. All IDC Select® sprockets come with hardened teeth and black oxide finish for long lasting service life. The finished bore design comes complete with a keyway on the centerline of the sprocket tooth and two setscrews, one over the keyway and one at 90 deg.

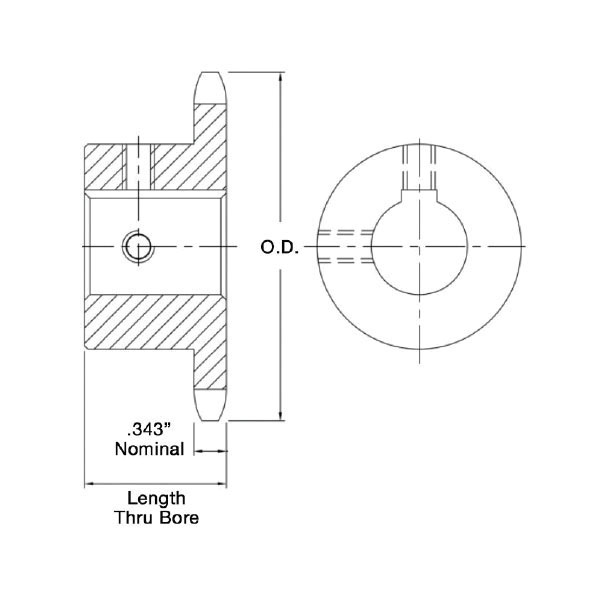

IDC Select® Single Strand Roller Chain Sprocket, Finished Bore Type B, 1-1/8 in Bore Dia, 4.72 in Outside Dia, 50 Chain, 22 Teeth, 5/8 in Pitch, 4.392 in, 5/16 in Screw, 1/4 in W x 1/8 in D Keyway, 1 in Length Through Bore, C1045 Steel, Black Oxide
| Bore Diameter | : | 1-1/8 in |
| Chain Size | : | 50 |
| Finish | : | Black Oxide |
| Keyway Size | : | 1/4 in W x 1/8 in D |
| Length Through Bore | : | 1 in |
| Material | : | C1045 Steel |
| Number of Teeth | : | 22 |
| Outside Diameter | : | 4.72 in |
| Pitch Diameter | : | 4.392 in |
| Pitch | : | 5/8 in |
| Screw Size | : | 5/16 in |
| Type | : | Finished Bore Type B |
- Hardened teeth for longer life
- Bored to size and ready to install
