IDC Select® IDC H41B60F-1-7/16 Finished Bore Type B Single Strand Roller Chain Sprocket, 1-7/16 in Dia Bore, 9.84 in OD, 41 Chain, 60 Teeth, 1/2 in Pitch, C1045 Steel

  • Manufacturer: IDC Select
  • Brand Name: IDC Select®
  • Part Number: IDCH41B60F-1-7/16
  • MPN: IDC H41B60F-1-7/16
  • UPC: 887412032672
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

IDC Select® offers a wide range of high quality roller chain sprockets produced in ISO certified facilities to ANSI standards. Plain bore, finished bore, taper and QD® bushing designs are available. All IDC Select® sprockets come with hardened teeth and black oxide finish for long lasting service life. The finished bore design comes complete with a keyway on the centerline of the sprocket tooth and two setscrews, one over the keyway and one at 90 deg.

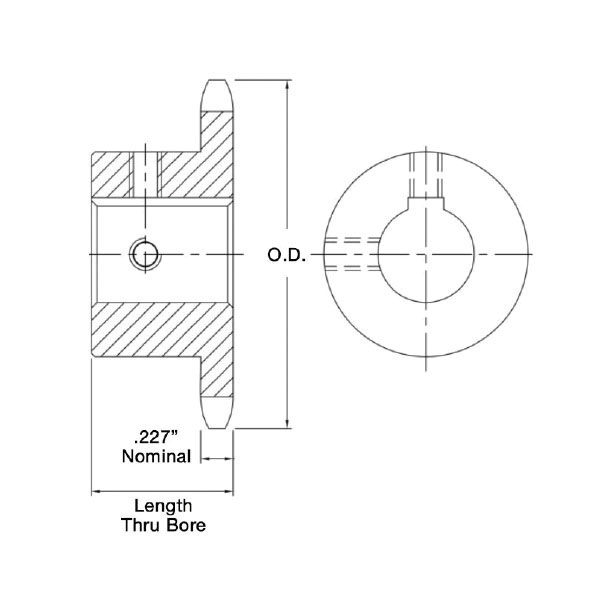

IDC Select® Single Strand Roller Chain Sprocket, Finished Bore Type B, 1-7/16 in Bore Dia, 9.84 in Outside Dia, 41 Chain, 60 Teeth, 1/2 in Pitch, 11.145 in, 3/8 in Screw, 3/8 in W x 3/16 in D Keyway, 1-1/16 in Length Through Bore, C1045 Steel, Black Oxide

Bore Diameter      :      1-7/16 in
Chain Size      :      41
Finish      :      Black Oxide
Keyway Size      :      3/8 in W x 3/16 in D
Length Through Bore      :      1-1/16 in
Material      :      C1045 Steel
Number of Teeth      :      60
Outside Diameter      :      9.84 in
Pitch Diameter      :      11.145 in
Pitch      :      1/2 in
Screw Size      :      3/8 in
Type      :      Finished Bore Type B
  • Hardened teeth for longer life
  • Bored to size and ready to install
