IDC Select® IDC H41B22 IDCH41B22
  1. pin-int

IDC Select® IDC H41B22 IDCH41B22

IDC Select® IDC H41B22 Plain Bore Type B Single Strand Roller Chain Sprocket, 5/8 in Dia Bore, 3.78 in OD, 41 Chain, 22 Teeth, 1/2 in Pitch, C1045 Steel

  • Manufacturer: IDC Select
  • Brand Name: IDC Select®
  • Part Number: IDCH41B22
  • MPN: IDC H41B22
  • UPC: 887412050782
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

IDC Select® offers a wide range of high quality roller chain sprockets produced in ISO certified facilities to ANSI standards. Plain bore, finished bore, taper and QD® bushing designs are available. All IDC Select® sprockets come with hardened teeth and black oxide finish for long lasting service life. The finished bore design comes complete with a keyway on the centerline of the sprocket tooth and two setscrews, one over the keyway and one at 90 deg.

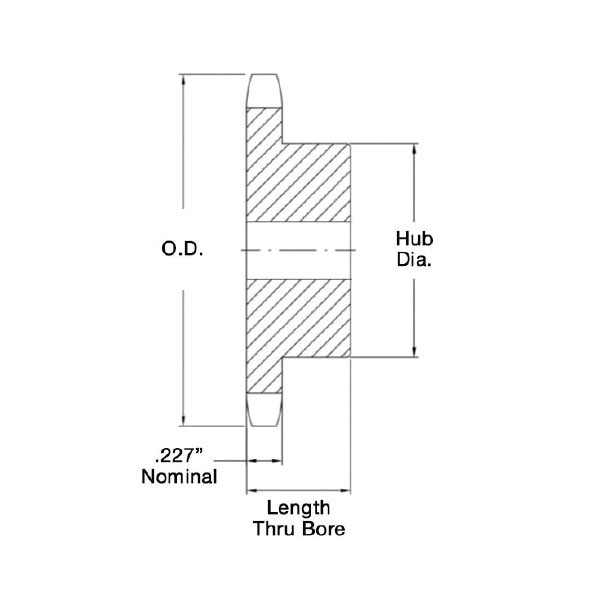

IDC Select® Single Strand Roller Chain Sprocket, Plain Bore Type B, 5/8 in Bore Dia, 3.78 in Outside Dia, 41 Chain, 22 Teeth, 1/2 in Pitch, 3.513 in, 3 in Hub Dia, 1 in Length Through Bore, C1045 Steel, Black Oxide

Bore Diameter      :      5/8 in
Chain Size      :      41
Finish      :      Black Oxide
Hub Diameter      :      3 in
Length Through Bore      :      1 in
Material      :      C1045 Steel
Number of Teeth      :      22
Outside Diameter      :      3.78 in
Pitch Diameter      :      3.513 in
Pitch      :      1/2 in
Type      :      Plain Bore Type B
  • Hardened teeth for longer life
  • pdfTechnical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDC_SELECT_IDC_100NB11H_Technical_Bulletin.pdf
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDC_SELECT_IDC_81X_Catalog.pdf
