IDC Select® IDC H40B59 IDCH40B59
  1. pin-int

IDC Select® IDC H40B59 IDCH40B59

IDC Select® IDC H40B59 Plain Bore Type B Single Strand Roller Chain Sprocket, 3/4 in Dia Bore, 9.68 in OD, 40 Chain, 59 Teeth, 1/2 in Pitch, C1045 Steel

  • Manufacturer: IDC Select
  • Brand Name: IDC Select®
  • Part Number: IDCH40B59
  • MPN: IDC H40B59
  • UPC: 887412050621
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

IDC Select® offers a wide range of high quality roller chain sprockets produced in ISO certified facilities to ANSI standards. Plain bore, finished bore, taper and QD® bushing designs are available. All IDC Select® sprockets come with hardened teeth and black oxide finish for long lasting service life. The finished bore design comes complete with a keyway on the centerline of the sprocket tooth and two setscrews, one over the keyway and one at 90 deg.

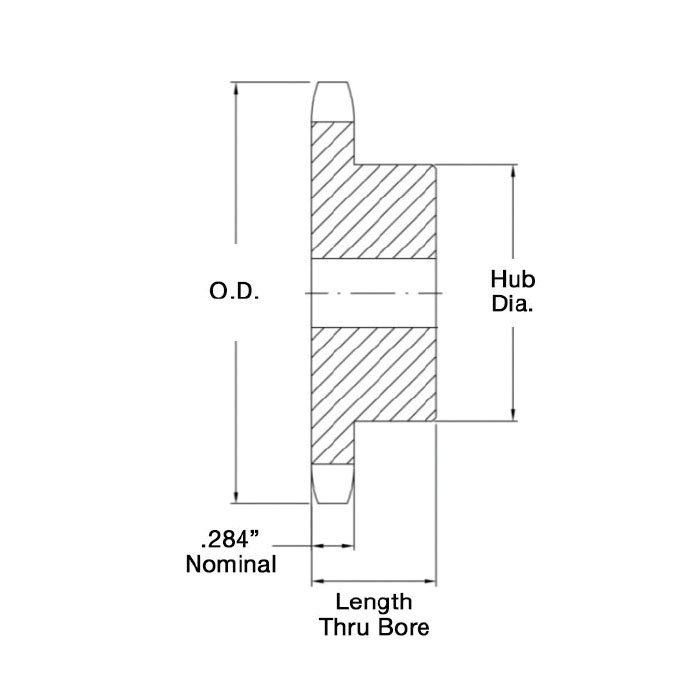

IDC Select® Single Strand Roller Chain Sprocket, Plain Bore Type B, 3/4 in Bore Dia, 9.68 in Outside Dia, 40 Chain, 59 Teeth, 1/2 in Pitch, 9.235 in, 3-1/2 in Hub Dia, 7/8 in Length Through Bore, C1045 Steel, Black Oxide

Bore Diameter      :      3/4 in
Chain Size      :      40
Finish      :      Black Oxide
Hub Diameter      :      3-1/2 in
Length Through Bore      :      7/8 in
Material      :      C1045 Steel
Number of Teeth      :      59
Outside Diameter      :      9.68 in
Pitch Diameter      :      9.235 in
Pitch      :      1/2 in
Type      :      Plain Bore Type B
  • Hardened teeth for longer life
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDC_SELECT_IDC_81X_Catalog.pdf
