IDC Select® IDC H100B24F-1-15/16 IDCH100B24F-1-15/16
  1. pin-int

IDC Select® IDC H100B24F-1-15/16 IDCH100B24F-1-15/16

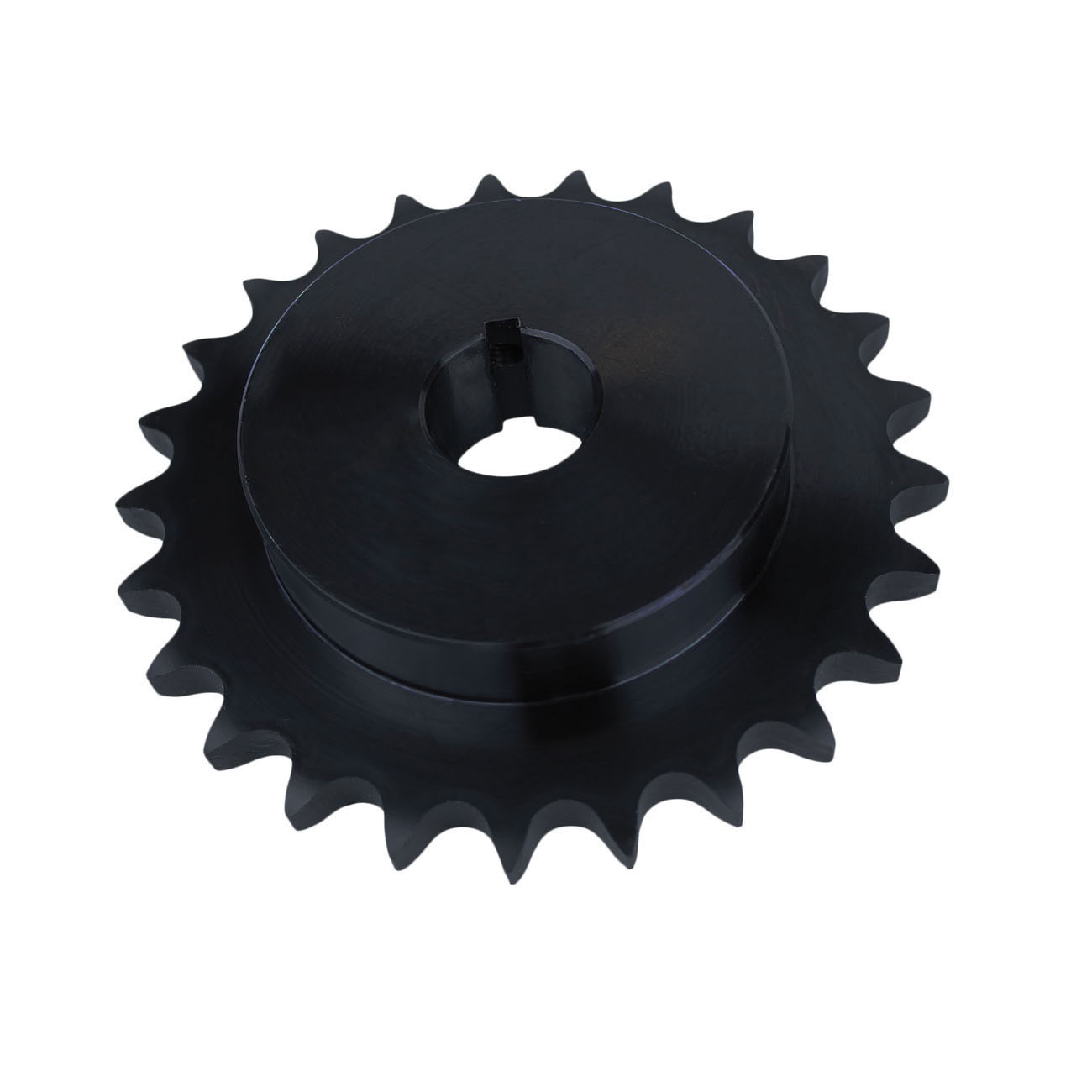

IDC Select® IDC H100B24F-1-15/16 Finished Bore Type B Single Strand Roller Chain Sprocket, 1-15/16 in Dia Bore, 10-1/4 in OD, 100 Chain, 24 Teeth, 1-1/4 in Pitch, C1045 Steel

  • Manufacturer: IDC Select
  • Brand Name: IDC Select®
  • Part Number: IDCH100B24F-1-15/16
  • MPN: IDC H100B24F-1-15/16
  • UPC: 887412049649
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Pricing and Availability

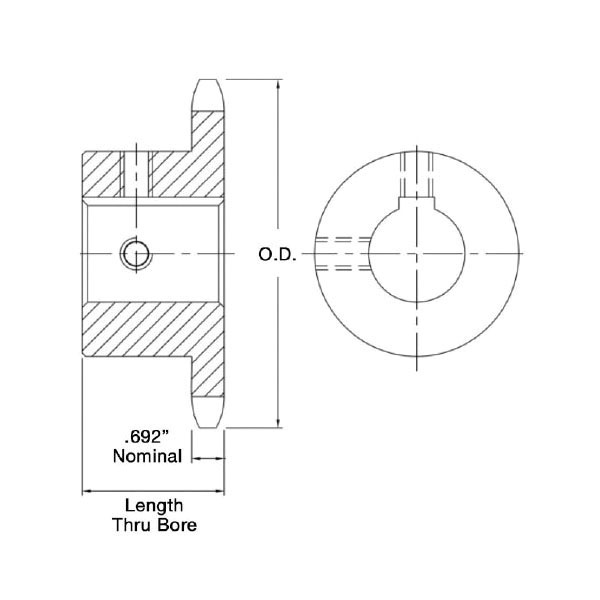

IDC Select® offers a wide range of high quality roller chain sprockets produced in ISO certified facilities to ANSI standards. Plain bore, finished bore, taper and QD® bushing designs are available. All IDC Select® sprockets come with hardened teeth and black oxide finish for long lasting service life. The finished bore design comes complete with a keyway on the centerline of the sprocket tooth and two setscrews, one over the keyway and one at 90 deg.

IDC Select® Single Strand Roller Chain Sprocket, Finished Bore Type B, 1-15/16 in Bore Dia, 10-1/4 in Outside Dia, 100 Chain, 24 Teeth, 1-1/4 in Pitch, 9.577 in, 1/2 in Screw, 1/2 in W x 1/4 in D Keyway, 2 in Length Through Bore, C1045 Steel, Black Oxide

Bore Diameter      :      1-15/16 in
Chain Size      :      100
Finish      :      Black Oxide
Keyway Size      :      1/2 in W x 1/4 in D
Length Through Bore      :      2 in
Material      :      C1045 Steel
Number of Teeth      :      24
Outside Diameter      :      10-1/4 in
Pitch Diameter      :      9.577 in
Pitch      :      1-1/4 in
Screw Size      :      1/2 in
Type      :      Finished Bore Type B
  • Hardened teeth for longer life
  • Bored to size and ready to install
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDC_SELECT_IDC_81X_Catalog.pdf
