IDC Select® IDC H-5/8 IDCH5/8
  1. pin-int

IDC Select® IDC H-5/8 IDCH5/8

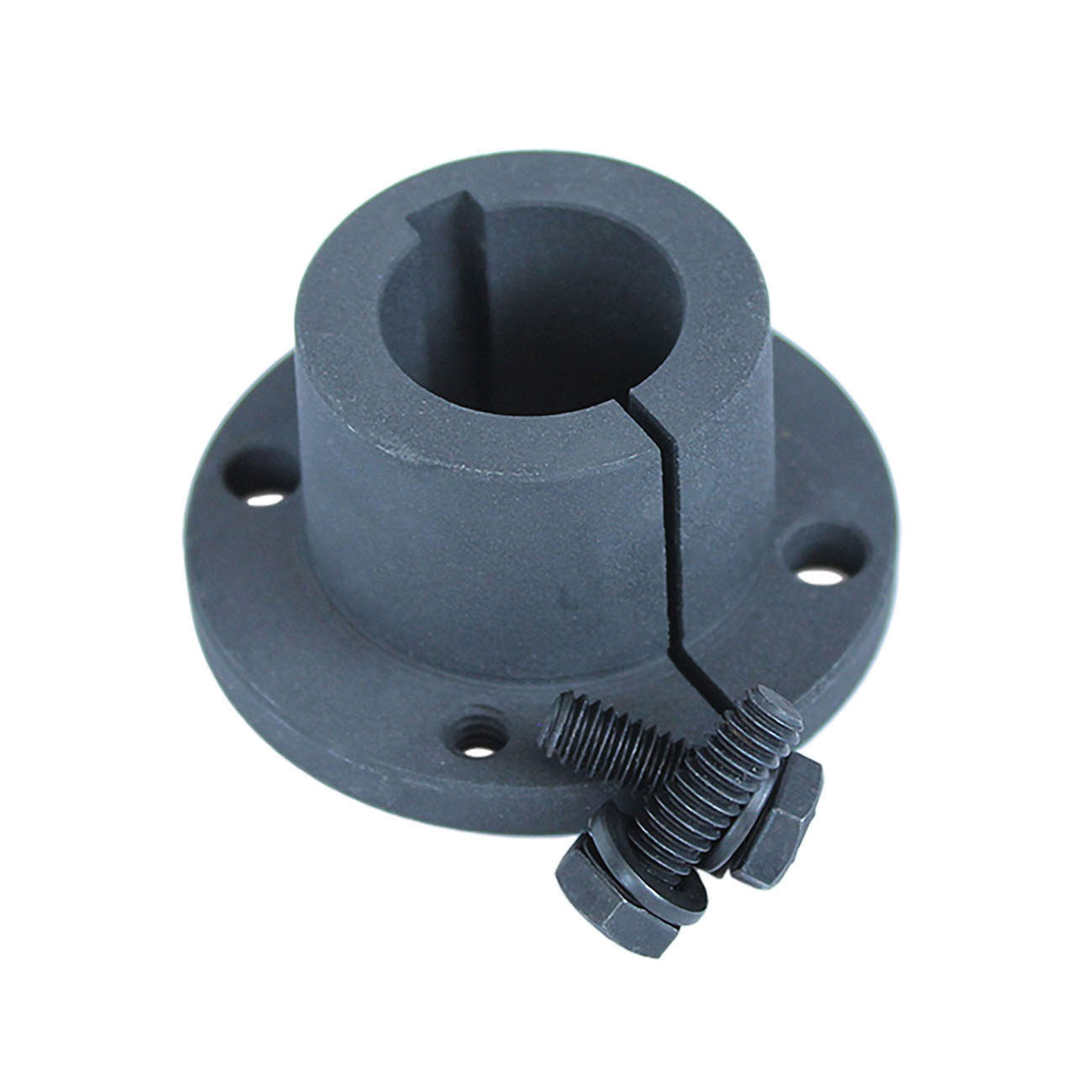

IDC Select® IDC H-5/8 Finished Bore Split Taper Bushing, 5/8 in Dia Bore, 1-5/8 in Dia Barrel, 2-1/2 in Dia Flange, 1-1/4 in OAL, Nodular Graphite Cast Iron

  • Manufacturer: IDC Select
  • Brand Name: IDC Select®
  • Part Number: IDCH5/8
  • MPN: IDC H-5/8
  • UPC: 887412018508
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

IDC Select® bushings are available in H, QD®, Taper-Lock®, and Split Taper™ designs and are available in inch and metric sizes. They are stocked in popular finished bore sizes. All IDC Select® bushings are fully interchangeable with industry standard design.

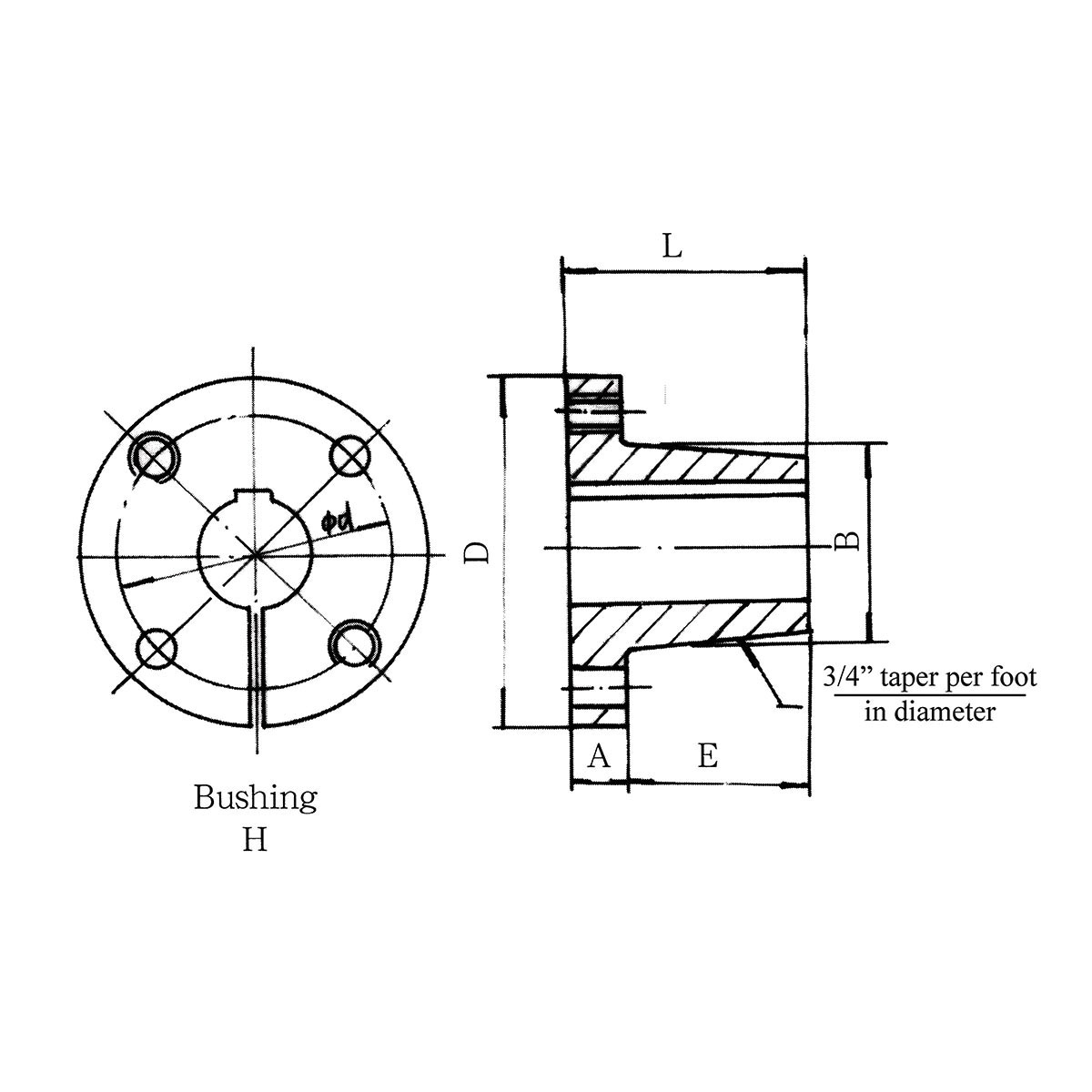

IDC Select® Split Taper Bushing, Finished Bore, 5/8 in Bore Dia, 1-5/8 in Barrel Dia, 2 in Bolt Circle, 2-1/2 in Flange Dia, 1/4 in Flange Thickness, 1/4-28 x 3/4 in Screw, 95 in-lb, 1-1/4 in Overall Length, 3/16 x 3/32 in Keyway, Nodular Graphite Cast Iron

Barrel Diameter      :      1-5/8 in
Bolt Circle Diameter      :      2 in
Bore Diameter      :      5/8 in
Flange Diameter      :      2-1/2 in
Flange Thickness      :      1/4 in
Keyway Size      :      3/16 x 3/32 in
Material      :      Nodular Graphite Cast Iron
Overall Length      :      1-1/4 in
Screw Size      :      1/4-28 x 3/4 in
Torque Rating      :      95 in-lb
Type      :      Finished Bore
  • Easy installation and dismount
  • Split barrel and flange
  • Keystock provided with shallow key sizes
  • H size Split Taper™ bushing
  • H style bushing
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDC_SELECT_IDC_1VL025_1_2_Catalog.pdf
  • pdfTechnical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDC_SELECT_IDC_1VL025_1_2_Technical_Bulletin.pdf
