IDC Select® IDC BK027-1/2 IDCBK0271/2
  1. pin-int

IDC Select® IDC BK027-1/2 IDCBK0271/2

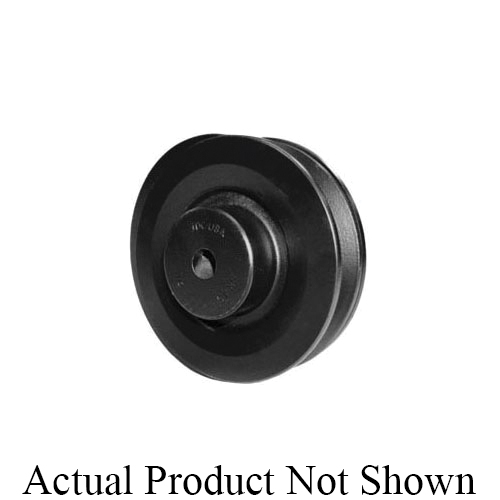

IDC Select® IDC BK027-1/2 Light Duty Type 2 Single Groove Sheave With Setscrew, Bored to Size Bore, 1/2 in Dia Bore, 2.7 in OD, 2-1/2 in Dia Pitch, 13/16 in W Face

  • Manufacturer: IDC Select
  • Brand Name: IDC Select®
  • Part Number: IDCBK0271/2
  • MPN: IDC BK027-1/2
  • UPC: 887412013121
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Sign In for Pricing and Availability

IDC Select® light duty bored-to-size sheaves are available in single and two groove designs for A-B and 3L-4L-5L belts. Each unit is supplied with a keyway and a set screw over the keyway. They are precision machined from 25 gray cast iron, statically balanced, painted with a baked enamel finish and individually packaged.

IDC Select® Single Groove Sheave, Light Duty Type 2, Bored to Size Bore, 1/2 in Bore Dia, 2.7 in Outside Dia, 2-1/2 in, 13/16 in Face Width, 13/32 in Hub Projection, For Use With: 4L/A and 5L/B Cross Section V-Belts, Class 25 Cast Iron, Baked Enamel

Bore Diameter      :      1/2 in
Bore Type      :      Bored to Size
Face Width      :      13/16 in
Finish      :      Baked Enamel
Hub Projection      :      13/32 in
Material      :      Class 25 Cast Iron
Outside Diameter      :      2.7 in
Pitch Diameter      :      2-1/2 in
Suitable For Use With      :      4L/A and 5L/B Cross Section V-Belts

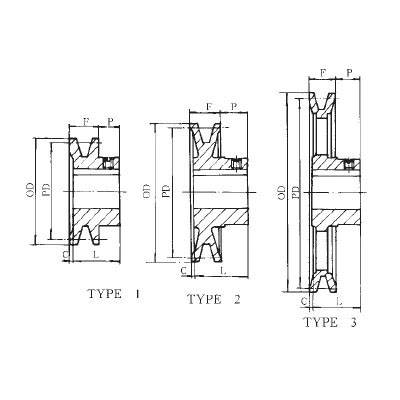

Type      :      Light Duty Type 2
  • Item Features 01=Precision machined from gray cast iron
  • Item Features 02=Statically balanced
  • Item Features 03=Cast iron sheaves should not exceed 6500 fpm rim speed
  • Item Features 04=Special or dynamic balancing should be considered when speeds exceed 5000 fpm
  • Item Features 05=Without keyway
  • Item Features 06=2.1 in Dia pitch 4L/2.5 in Dia pitch 5L(B)
  • pdfTechnical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDC_SELECT_IDC_1VL025_1_2_Technical_Bulletin.pdf
