IDC Select® IDC AK184-1-3/16 IDCAK1841 3/16
  1. pin-int

IDC Select® IDC AK184-1-3/16 IDCAK1841 3/16

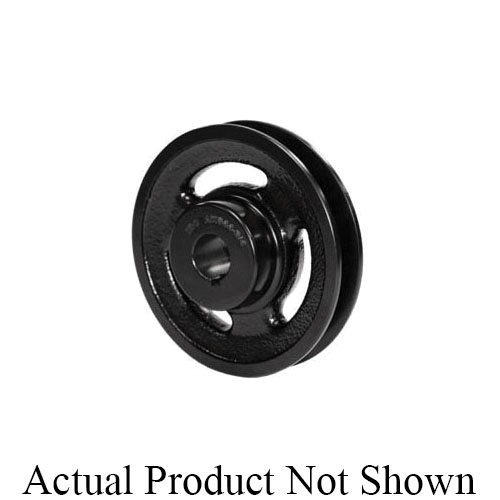

IDC Select® IDC AK184-1-3/16 Light Duty Type 3 Single Groove Sheave With 1/4 x 1/8 in Keyway and Setscrew, Bored to Size Bore, 1-3/16 in Dia Bore, 18-1/4 in OD, 18 in Dia Pitch, 3/4 in W Face

  • Manufacturer: IDC Select
  • Brand Name: IDC Select®
  • Part Number: IDCAK1841 3/16
  • MPN: IDC AK184-1-3/16
  • UPC: 887412011523
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

IDC Select® light duty bored-to-size sheaves are available in single and two groove designs for A-B and 3L-4L-5L belts. Each unit is supplied with a keyway and a set screw over the keyway. They are precision machined from 25 gray cast iron, statically balanced, painted with a baked enamel finish and individually packaged.

IDC Select® Single Groove Sheave, Light Duty Type 3, Bored to Size Bore, 1-3/16 in Bore Dia, 18-1/4 in Outside Dia, 18 in, 3/4 in Face Width, 23/32 in Hub Projection, For Use With: 3L and 4L/A Cross Section V-Belts, Class 25 Cast Iron, Baked Enamel

Bore Diameter      :      1-3/16 in
Bore Type      :      Bored to Size
Face Width      :      3/4 in
Finish      :      Baked Enamel
Hub Projection      :      23/32 in
Material      :      Class 25 Cast Iron
Outside Diameter      :      18-1/4 in
Pitch Diameter      :      18 in
Suitable For Use With      :      3L and 4L/A Cross Section V-Belts
Type      :      Light Duty Type 3
  • Precision machined from gray cast iron
  • Statically balanced
  • Cast iron sheaves should not exceed 6500 fpm rim speed
  • Special or dynamic balancing should be considered when speeds exceed 5000 fpm
  • 17.66 in Dia pitch 3L/18 in Dia pitch 4L(A)
