IDC Select® IDC AK066H IDCAK066H
  1. pin-int

IDC Select® IDC AK066H IDCAK066H

IDC Select® IDC AK066H Light Duty Type 3 Single Groove Sheave, 6.45 in OD, 6.2 in Dia Pitch, 3/4 in W Face

  • Manufacturer: IDC Select
  • Brand Name: IDC Select®
  • Part Number: IDCAK066H
  • MPN: IDC AK066H
  • UPC: 887412008226
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

IDC Select® light duty H bushed sheaves are available in A section single and two groove design and B section single, two groove and three groove designs for A-B and 3L-4L-5L belts. Each unit comes designed to be compatible with the H design bushing. They are precision machined from 25 gray cast iron, statically balanced, painted with a baked enamel finish and individually packaged.

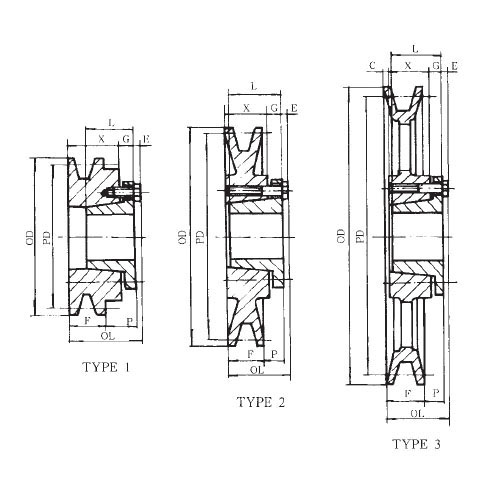

IDC Select® Single Groove Sheave, Light Duty Type 3, 6.45 in OD, 6.2 in Pitch Diameter, 3/4 in Face Width, H Bushing, 1-1/2 in Overall Length, For Use With: 3L and 4L/A Cross Section V-Belts, Class 25 Cast Iron, Baked Enamel

Bushing Type      :      H
Face Width      :      3/4 in
Finish      :      Baked Enamel
Material      :      Class 25 Cast Iron
Outside Diameter      :      6.45 in
Overall Length      :      1-1/2 in
Pitch Diameter      :      6.2 in
Suitable For Use With      :      3L and 4L/A Cross Section V-Belts
Type      :      Light Duty Type 3
  • Item Features 01=Precision machined from gray cast iron
  • Item Features 02=Statically balanced
  • Item Features 03=Cast iron sheaves should not exceed 6500 fpm rim speed
  • Item Features 04=Special or dynamic balancing should be considered when speeds exceed 5000 fpm
  • Item Features 05=5.86 in Dia pitch 3L/6.2 in Dia pitch 4L(A)
  • pdfTechnical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDC_SELECT_IDC_1VL025_1_2_Technical_Bulletin.pdf
