IDC Select® IDC 6C180F IDC6C180F

IDC Select® QD®® IDC 6C180F Heavy Duty Type A-3 Arm/Spoke Sheave, QD® Bore, 18.4 in OD, 6 Grooves, 18 in Dia Pitch, 6-3/8 in W Face

  • Manufacturer: IDC Select
  • Brand Name: IDC Select®
  • Part Number: IDC6C180F
  • MPN: IDC 6C180F
  • UPC: 887412007632
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

IDC Select® classical A/B combination, C and D sheaves, and narrow 3V, 5V, and 8V sheaves are available in QD® bushing designs. They are precision machined from 30 gray cast iron, statically balanced, painted with a baked enamel finish and individually packaged.

IDC Select® QD®® Sheave, Heavy Duty Type A-3 Arm/Spoke, QD® Bore, 18.4 in OD, 18 in Pitch Diameter, 6 Grooves, 6-3/8 in Face Width, F Bushing, For Use With: C-Cross Section V-Belts, Cast Iron, Baked Enamel

Bore Type      :      QD®
Bushing Type      :      F
Face Width      :      6-3/8 in
Finish      :      Baked Enamel
Material      :      Cast Iron
Number of Grooves      :      6
Outside Diameter      :      18.4 in
Pitch Diameter      :      18 in
Suitable For Use With      :      C-Cross Section V-Belts

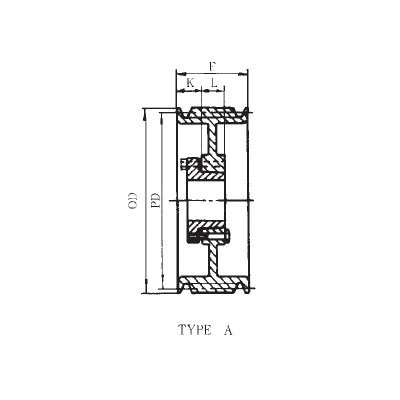

Type      :      Heavy Duty Type A-3 Arm/Spoke
  • Precision machined from gray cast iron
  • Statically balanced
  • Cast iron sheaves should not exceed 6500 fpm rim speed
  • Special or dynamic balancing should be considered when speeds exceed 5000 fpm
  • Accepts QD® style bushings
  • pdfTechnical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDC_SELECT_IDC_1VL025_1_2_Technical_Bulletin.pdf
