IDC Select® IDC 6318 IDC6318

IDC Select® radial ball bearings are produced to strict specification tolerances that are designed to meet or exceed USA industry standards. All product series are produced in ISO certified factories with automated production assembly lines that are ISO/TS16949 certified. All IDC Select® products are 100% noise tested to meet factory electric motor quality noise levels. Standard radial series 6000, 6200 and 6300 are produced as standard C3 clearance and all products are supplied with 25 to 35% fill Polyrex EM grease or equal. All products are certified to ANSI/ABMA ABEC 1 tolerance with most meeting ABEC 3 tolerances based on the automated production processes. Forging and heat treatment are done in house and all bearings are heat stabilized to 250 deg F. Grade 10 balls are used on the small sizes up to 50 mm bore and grade 25 balls are used on all sizes over 50 mm bore. Standard series products are produced with SAE 52100 steel. Sizes offered in stainless steel are produced with 440C steel. Seals are produced from NBR rubber with a steel backing.

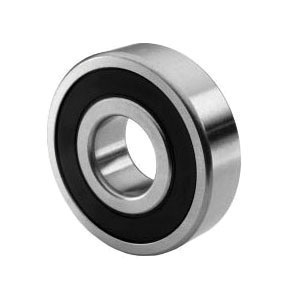

IDC Select® Deep Groove Ball Bearing, Medium Duty, Series: 6300, 90 mm Bore Dia, 190 mm Outside Dia, 1 Row, 43 mm W, Open Closure, 32000 lb, SAE-52100 Chromium Steel Bearing, NBR Seal, Steel Cage, 3600 rpm Grease/4300 rpm Oil Maximum, 250 deg F

• Deep groove ball bearings incorporate grooved raceways on both the inner ring and outer ring, which enable them to sustain moderate axial loads in both directions in addition to radial loads
• Balls are separated by steel cages, permitting high speed operation
• Open bearings are supplied with a coating of light oil and are used in oil bath and oil mist environments
• C3 radial internal clearance
• 32000 lb dynamic/24100 lb static load capacity

• Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDC_SELECT_IDC_1602_ZZ_Technical_Bulletin.pdf
