IDC Select® IDC 5B042SD IDC5B042SD

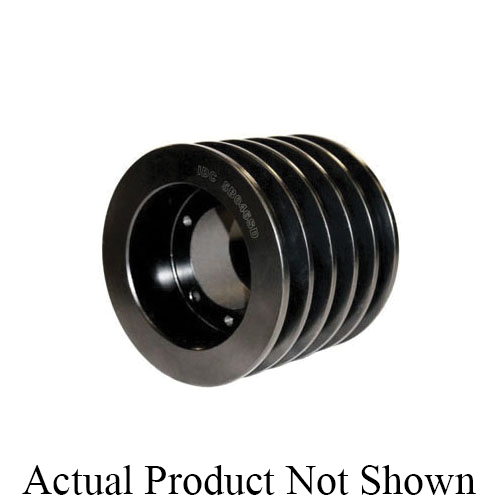

IDC Select® QD®® IDC 5B042SD Heavy Duty Type E-1 Solid Sheave, QD® Bore, 4.55 in OD, 5 Grooves, 4.2 in Dia Pitch, 4 in W Face

  • Manufacturer: IDC Select
  • Brand Name: IDC Select®
  • Part Number: IDC5B042SD
  • MPN: IDC 5B042SD
  • UPC: 887412005287
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

IDC Select® classical A/B combination, C and D sheaves, and narrow 3V, 5V, and 8V sheaves are available in QD® bushing designs. They are precision machined from 30 gray cast iron, statically balanced, painted with a baked enamel finish and individually packaged.

IDC Select® QD®® Sheave, Heavy Duty Type E-1 Solid, QD® Bore, 4.55 in OD, 4.2 in Pitch Diameter, 5 Grooves, 4 in Face Width, SD Bushing, For Use With: AB Cross Section V-Belts, Cast Iron, Baked Enamel

Bore Type      :      QD®
Bushing Type      :      SD
Face Width      :      4 in
Finish      :      Baked Enamel
Material      :      Cast Iron
Number of Grooves      :      5
Outside Diameter      :      4.55 in
Pitch Diameter      :      4.2 in
Suitable For Use With      :      AB Cross Section V-Belts

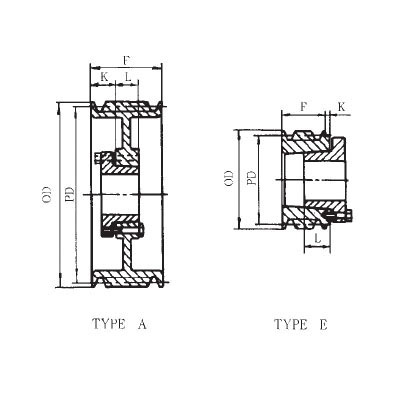

Type      :      Heavy Duty Type E-1 Solid
  • Precision machined from gray cast iron
  • Statically balanced
  • Cast iron sheaves should not exceed 6500 fpm rim speed
  • Special or dynamic balancing should be considered when speeds exceed 5000 fpm
  • Accepts QD® style bushings
  • Reverse mount only, use standard bolts supplied with bushing
  • 3.8 in Dia pitch A/4.2 in Dia pitch B
