IDC Select® IDC 5/5V5000J IDC5/5V5000J

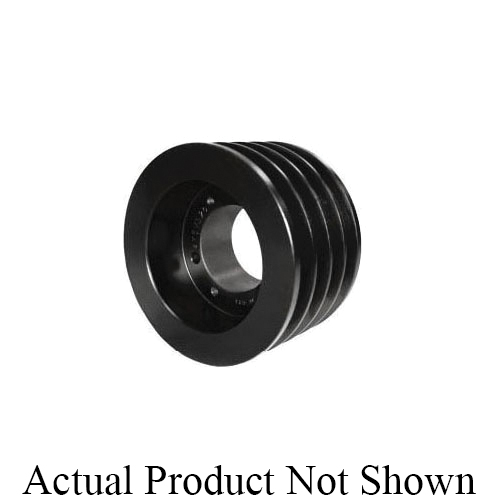

IDC Select® IDC 5/5V5000J Heavy Duty Type C-3 Arm/Spoke Sheave, QD® Bore, 50 in OD, 5 Grooves, 45.9 in Dia Pitch, 3-3/4 in W Face

  • Manufacturer: IDC Select
  • Brand Name: IDC Select®
  • Part Number: IDC5/5V5000J
  • MPN: IDC 5/5V5000J
  • UPC: 887412002590
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

IDC Select® classical A/B combination, C and D sheaves, and narrow 3V, 5V, and 8V sheaves are available in QD® bushing designs. They are precision machined from 30 gray cast iron, statically balanced, painted with a baked enamel finish and individually packaged.

IDC Select® Sheave, Heavy Duty Type C-3 Arm/Spoke, QD® Bore, 50 in OD, 45.9 in Pitch Diameter, 5 Grooves, 3-3/4 in Face Width, J Bushing, For Use With: 5V-Cross Section V-Belts, Cast Iron, Baked Enamel

Bore Type      :      QD®
Bushing Type      :      J
Face Width      :      3-3/4 in
Finish      :      Baked Enamel
Material      :      Cast Iron
Number of Grooves      :      5
Outside Diameter      :      50 in
Pitch Diameter      :      45.9 in
Suitable For Use With      :      5V-Cross Section V-Belts

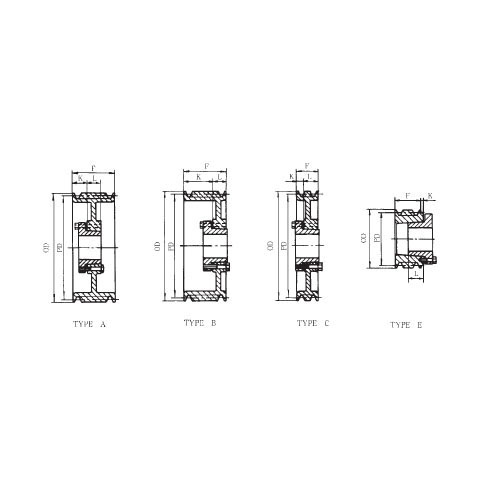

Type      :      Heavy Duty Type C-3 Arm/Spoke
  • Precision machined from gray cast iron
  • Statically balanced
  • Cast iron sheaves should not exceed 6500 fpm rim speed
  • Special or dynamic balancing should be considered when speeds exceed 5000 fpm
  • Accepts QD® style bushings
  • pdfTechnical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDC_SELECT_IDC_1VL025_1_2_Technical_Bulletin.pdf
