IDC Select® IDC 4B068SD IDC4B068SD

IDC Select® QD®® IDC 4B068SD Heavy Duty Type A-3 Arm/Spoke Sheave, QD® Bore, 7.15 in OD, 4 Grooves, 6.8 in Dia Pitch, 3-1/4 in W Face

  • Manufacturer: IDC Select
  • Brand Name: IDC Select®
  • Part Number: IDC4B068SD
  • MPN: IDC 4B068SD
  • UPC: 887412005089
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

IDC Select® classical A/B combination, C and D sheaves, and narrow 3V, 5V, and 8V sheaves are available in QD® bushing designs. They are precision machined from 30 gray cast iron, statically balanced, painted with a baked enamel finish and individually packaged.

IDC Select® QD®® Sheave, Heavy Duty Type A-3 Arm/Spoke, QD® Bore, 7.15 in OD, 6.8 in Pitch Diameter, 4 Grooves, 3-1/4 in Face Width, SD Bushing, For Use With: AB Cross Section V-Belts, Cast Iron, Baked Enamel

Bore Type      :      QD®
Bushing Type      :      SD
Face Width      :      3-1/4 in
Finish      :      Baked Enamel
Material      :      Cast Iron
Number of Grooves      :      4
Outside Diameter      :      7.15 in
Pitch Diameter      :      6.8 in
Suitable For Use With      :      AB Cross Section V-Belts

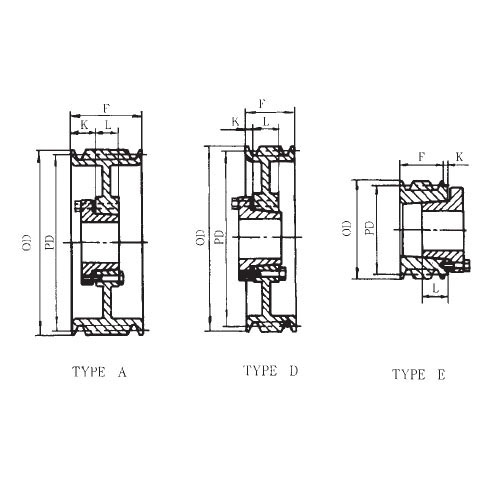

Type      :      Heavy Duty Type A-3 Arm/Spoke
  • Precision machined from gray cast iron
  • Statically balanced
  • Cast iron sheaves should not exceed 6500 fpm rim speed
  • Special or dynamic balancing should be considered when speeds exceed 5000 fpm
  • Accepts QD® style bushings
  • 6.4 in Dia pitch A/6.8 in Dia pitch B
