IDC Select® IDC 4040-3-3/4 IDC40403 3/4

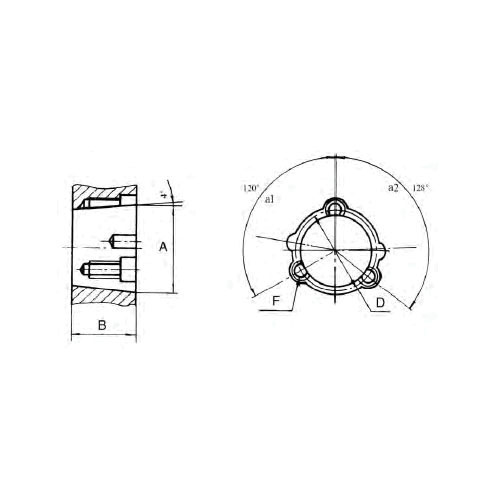

IDC Select® IDC 4040-3-3/4 Finished Bore Taper-Lock® Bushing, 3-3/4 in Dia Bore, 5-3/4 in Dia Barrel, 4 in OAL, Nodular Graphite Cast Iron

  • Manufacturer: IDC Select
  • Brand Name: IDC Select®
  • Part Number: IDC40403 3/4
  • MPN: IDC 4040-3-3/4
  • UPC: 887412071848
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

IDC Select® bushings are available in H, QD®, Taper-Lock®, and Split Taper™ designs and are available in inch and metric sizes. They are stocked in popular finished bore sizes. All IDC Select® bushings are fully interchangeable with industry standard design.

IDC Select® Taper-Lock® Bushing, Finished Bore, 3-3/4 in Bore Dia, 5-3/4 in Barrel Dia, 8 deg Taper, 5.54 in Bolt Circle, 5/8-11 UNC Screw, 1670 in-lb, 4 in Overall Length, 7/8 x 1/4 in Keyway, Nodular Graphite Cast Iron

Barrel Diameter      :      5-3/4 in
Bolt Circle Diameter      :      5.54 in
Bore Diameter      :      3-3/4 in
Keyway Size      :      7/8 x 1/4 in
Material      :      Nodular Graphite Cast Iron
Overall Length      :      4 in
Screw Size      :      5/8-11 UNC
Taper      :      8 deg
Torque Rating      :      1670 in-lb
Type      :      Finished Bore
  • Flush mount - clean and compact
  • Easy installation and dismount
  • 8 deg taper - fits equivalent to shrink fit
  • Globally accepted
  • Keystock provided with shallow key sizes
  • 4040 Taper-Lock® bushing
