IDC Select® IDC 4/8V5300M IDC4/8V5300M

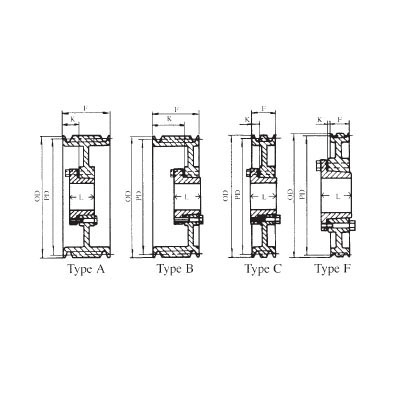

IDC Select® IDC 4/8V5300M Heavy Duty Sheave, QD® Bore, 4 Grooves, 53 in Dia Pitch

  • Manufacturer: IDC Select
  • Brand Name: IDC Select®
  • Part Number: IDC4/8V5300M
  • MPN: IDC 4/8V5300M
  • UPC: 887412003450
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

IDC Select® classical A/B combination, C and D sheaves, and narrow 3V, 5V, and 8V sheaves are available in QD® bushing designs. They are precision machined from 30 gray cast iron, statically balanced, painted with a baked enamel finish and individually packaged.

IDC Select® Sheave, Heavy Duty, QD® Bore, 53 in Pitch Diameter, 4 Grooves, M Bushing, For Use With: 8V Cross Section V-Belt, Cast Iron, Baked Enamel

Bore Type      :      QD®
Bushing Type      :      M
Finish      :      Baked Enamel
Material      :      Cast Iron
Number of Grooves      :      4
Pitch Diameter      :      53 in
Suitable For Use With      :      8V Cross Section V-Belt
Type      :      Heavy Duty
  • Precision machined from gray cast iron
  • Statically balanced
  • Cast iron sheaves should not exceed 6500 fpm rim speed
  • Special or dynamic balancing should be considered when speeds exceed 5000 fpm
  • Accepts QD® style bushings
